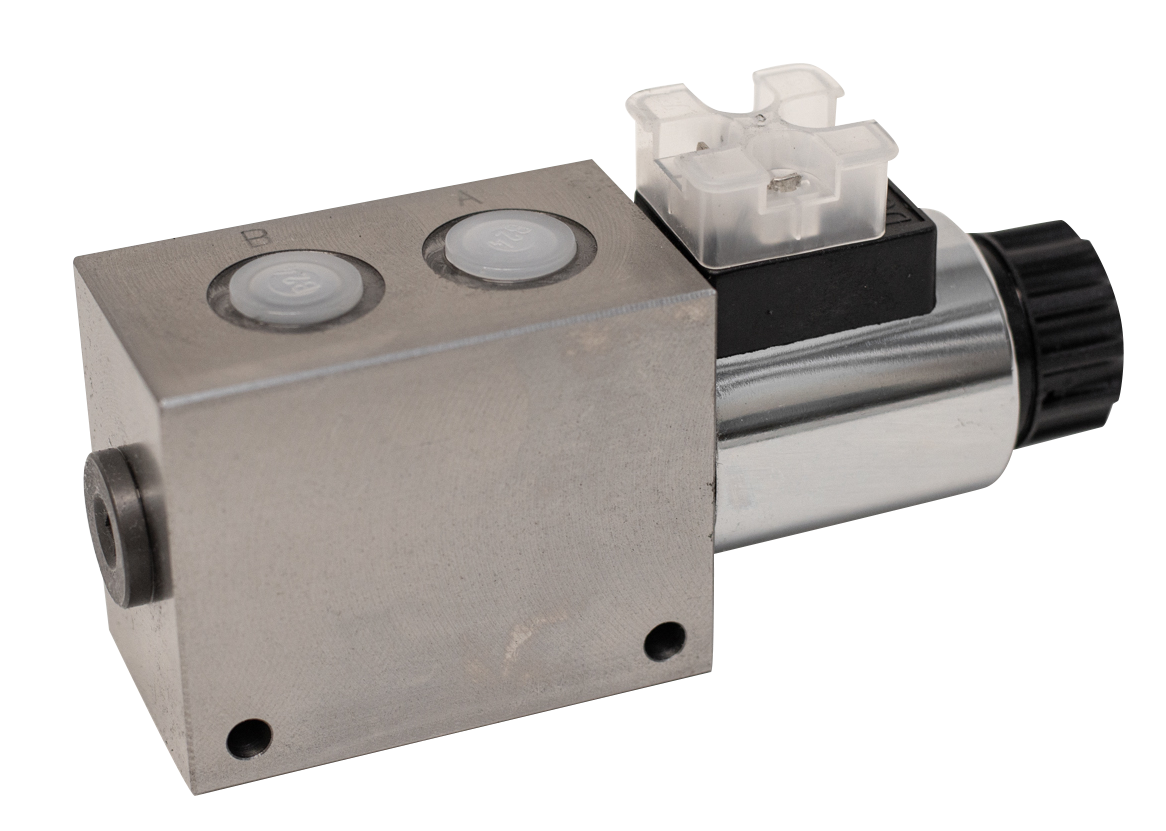

AK Regeltechnik 3/2 way valve 12V for pipeline installation
AK Regeltechnik 3/2 way valve 12V for pipeline installation
Beschreibung
Product information "3/2 way valve 12V for pipeline installation"
The valve is designed as a 3/2-way changeover valve. In the neutral position, connection P is connected to connection A~ when energized, connection P is connected to connection B. The control magnet can be supplied for different operating voltages. Small internal leaks are permitted because the valve is designed as a slide valve. A magnetic plug (FAIE No. 28483) can optionally be supplied.
The valve can be used in all common hydraulic systems.
Technical data:
max. operating pressure: 250 bar
max. return pressure: 10 bar< br> Nominal flow: 40 l/min
Tightening torque: 78 Nm
Coverage: positive
Connections: G3/8
Weight: 2.46 kg
Dimensions: 162.5x46x65 mm
Operating fluid: Hydraulic oil according to DIN 51524
Viscosity: 10-200
Operating temperature: -20 to +80C
The valve can be used in all common hydraulic systems.
Technical data:
max. operating pressure: 250 bar
max. return pressure: 10 bar< br> Nominal flow: 40 l/min
Tightening torque: 78 Nm
Coverage: positive
Connections: G3/8
Weight: 2.46 kg
Dimensions: 162.5x46x65 mm
Operating fluid: Hydraulic oil according to DIN 51524
Viscosity: 10-200
Operating temperature: -20 to +80C
| Flow rate (l/min): | 40 |
|---|---|
| Operating pressure (bar): | 250 |
| Previous article: | 47708 |
| Suchnummer: | 29596 |
| Thread: | G 3/8" |
| Voltage (V): | 12 |
Hersteller
AK-Regeltechnik GmbH
Dieselstraße 6a
38350
Helmstedt
DE
[email protected]
GTIN/EAN:
4044841101249
Downloads
bed_wegeventil-29596.pdf
