AK Regeltechnik Additional control unit suitable for Fiat, Ford, IHC, Massey Ferguson, McCormick, New Holland
AK Regeltechnik Additional control unit suitable for Fiat, Ford, IHC, Massey Ferguson, McCormick, New Holland
Produkt-Highlights
- Umschaltbar von einfachwirkend auf doppeltwirkend
- Hydraulische Endabschaltung in Heben
- Gerastete Schwimmstellung als vierte Schaltstellung nach Senken<
Beschreibung
Product information "Additional control unit suitable for Fiat, Ford, IHC, Massey Ferguson, McCormick, New Holland"

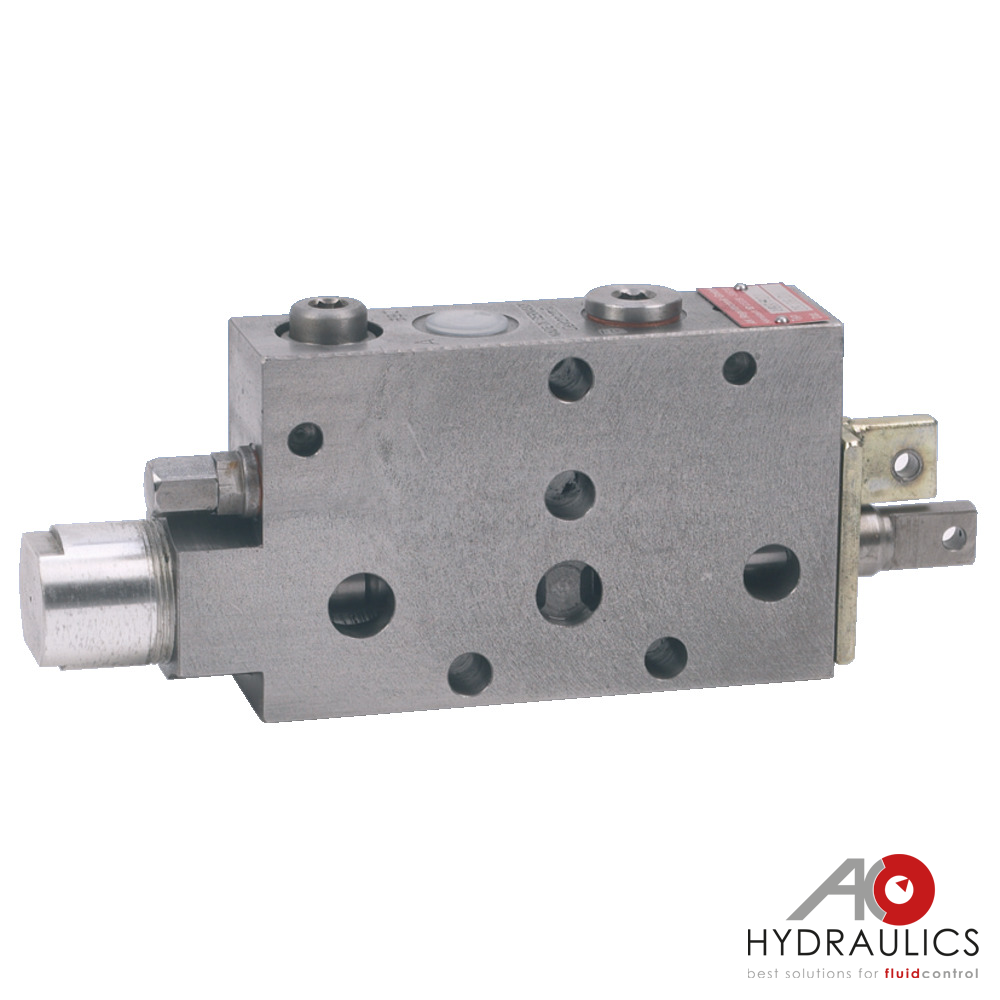

This control valve is a /4-way valve that is operated manually to control single-acting and double-acting cylinders as well as hydraulic motors. The control valve from AK- Regeltechnik was developed specifically for Fiatagri tractors with Kontak hydraulics. Due to the high liter output, up to 4 control valves can be flanged directly. Since the hole pattern is completely identical to Kontak/Parker, this valve can also be installed with original Kontak/Parker control valves. The valve is a four-position device. It can be converted from double-acting to single-acting and vice versa. The control valve is a slide-sealed valve that exhibits absolutely neutral fine control behavior and allows extremely low fit leakage even at higher pressures. The device has a locked safety limit switch in the LIFTING position. If you switch further via the LOWER position, you will reach a locked floating position. This can be returned to the NEUTRAL position manually at any time.
| Previous article: | 1630 |
|---|---|
| Suchnummer: | 27102 |
| can be used instead of Fiat: | 5116876, 5146656, 5146657 |
| can be used instead of New Holland: | 5116876, 5146656, 5146657 |
| suitable for FIAT: | 55-66, 55-90, 60-66, 60-90, 65-66, 65-90, 70-66, 70-90, 80-66, 80-90, 85-90, 90-90, 100-90, 110-90, 466, 566, 580, 666, 680, 780, 880, 980, L60, L65, L75, L85, L95 |
| suitable for Massey Ferguson: | 352, 362, 365, 372, 382, 390, 390T, 399, 4115, 4120, 4125, 4135, 4145, 4155, 4160, 4170, 4215, 4220, 4225, 4235, 4245, 4255 |
| suitable for Massey Ferguson series: | 300, 500, 1000, 4200 |
| suitable for New Holland: | TLA70, TLA80, TLA90, TLA100 |
Hersteller
AK-Regeltechnik GmbH
Dieselstraße 6a
38350
Helmstedt
DE
[email protected]
GTIN/EAN:
4044841191301
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
22 %
#FA105831

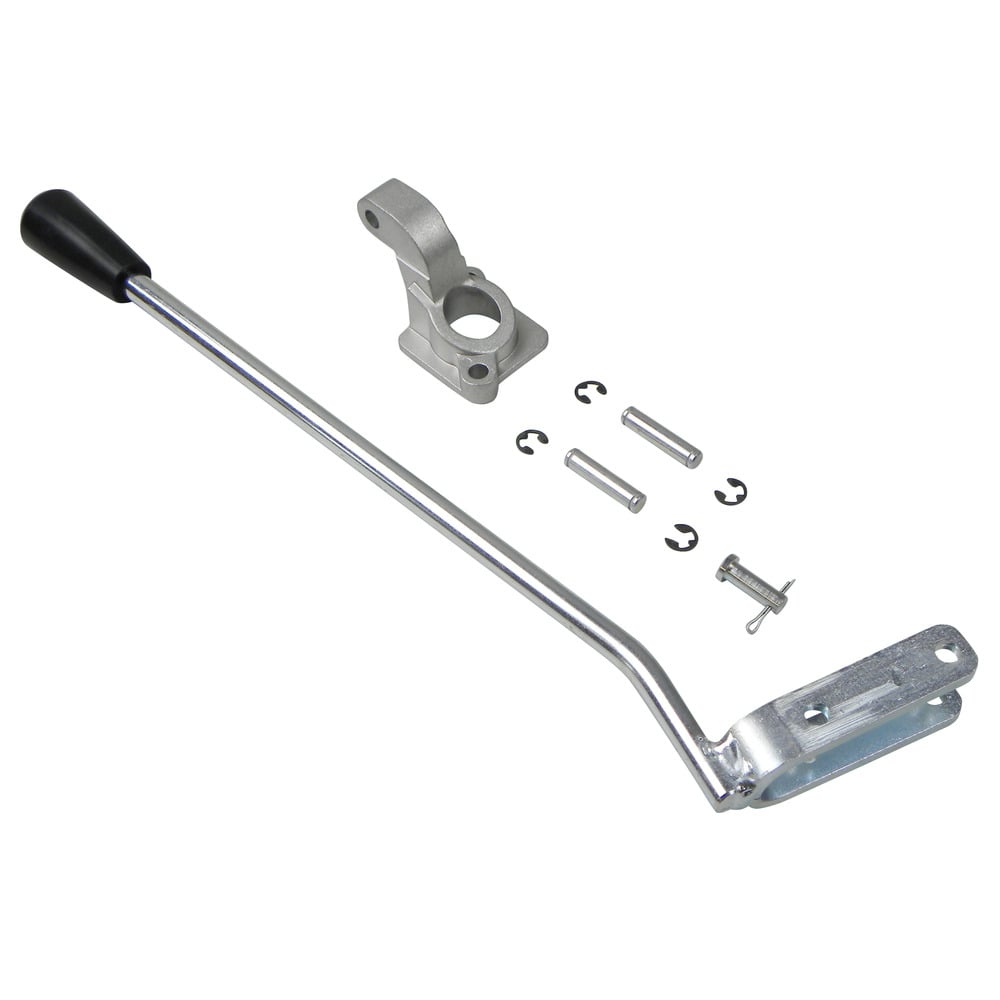

Long lever set for contact valves
Sale and shipment by: FAIE Handels GmbH
Long lever set suitable for Kontak valves, complete with mounting kit. Lever complete with attachments for operating the control valves. The length of the lever is approx. 300mm.Suitable for all Kontak control valves from the KA series.
