Bondioli & Pavesi Angle gear 1018 for circular saws with ratio 1:2.78, direction of rotation remains the same
Bondioli & Pavesi Angle gear 1018 for circular saws with ratio 1:2.78, direction of rotation remains the same
€219.00 *
available within 14 working days
Beschreibung

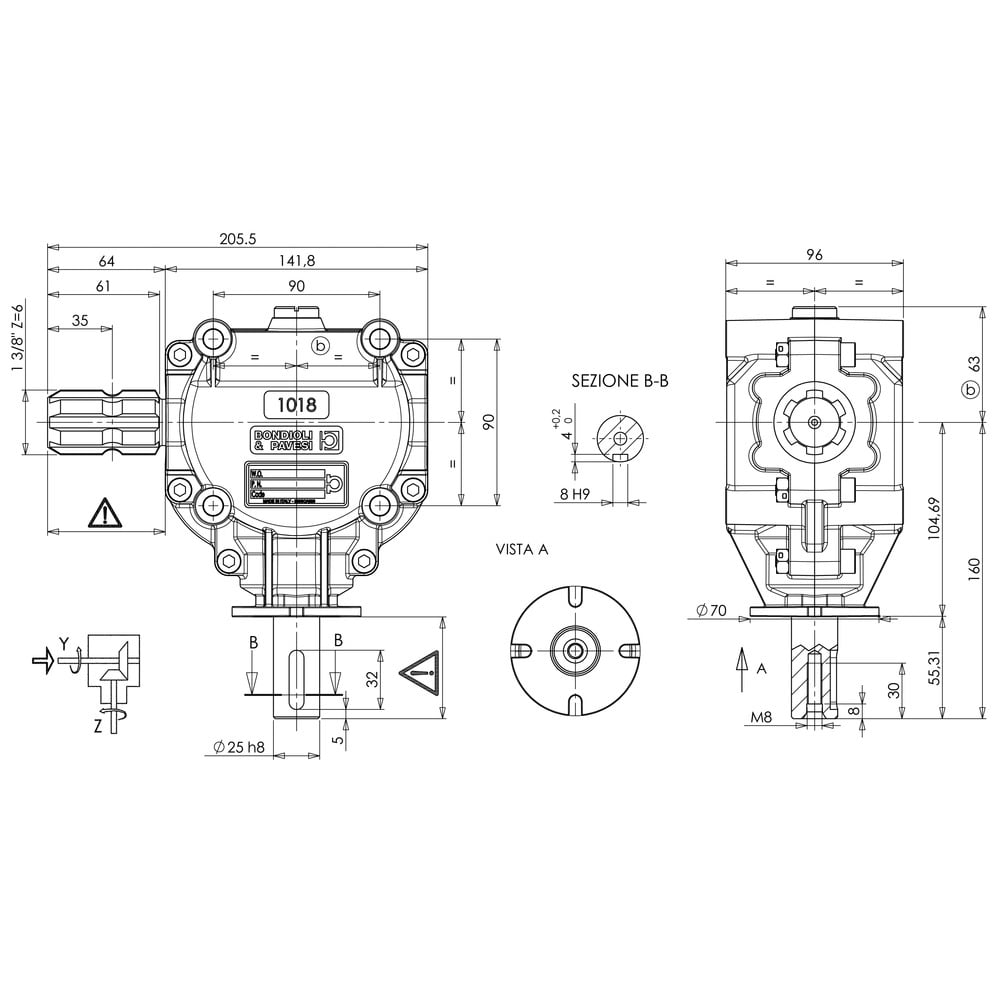

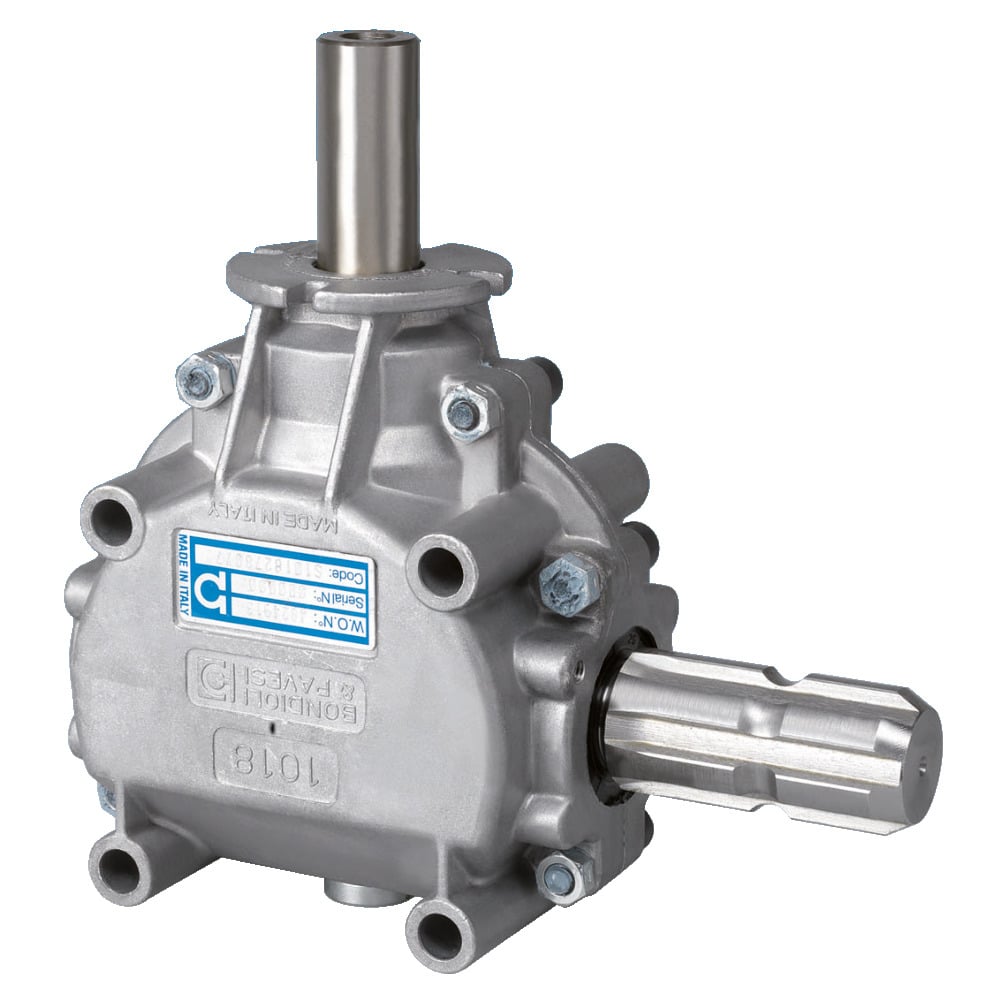

The angular gear 1018 is a compact and lightweight gear designed for use in circular saws. The gearbox has a gear ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is consistent with the direction of rotation of the input shaft (viewed from the visible end of the shaft). The angle gearbox is equipped with a high-strength aluminum housing, a PTO shaft profile 1 3/8 x 6 at the input and an output shaft with a diameter of 25 mm. The gearbox can accommodate torque peaks of up to 2 times the rated torque. of the nominal torque. ~We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox. Please note that before putting the gearbox into operation, fill and check the oil level. The maximum power transmission is 7kW at 540rpm and 11kW at 1000rpm.
- Compact and light
- High-quality workmanship
- High torque
- Long service life
- Universal applications< /li>
| Direction of rotation: | gleichbleibend |
|---|---|
| Input speed (rpm): | 540 |
| Output speed (rpm): | 1501 |
| Suchnummer: | 72297 |
| Torque input at 540 rpm (Nm): | 130 |
| Torque input at 1000 rpm (Nm): | 105 |
| Torque output at 540 rpm (Nm): | 47 |
| Torque output at 1000 rpm (Nm): | 38 |
| Translation: | 1 : 2,78 |
Hersteller
Bondioli + Pavesi
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
