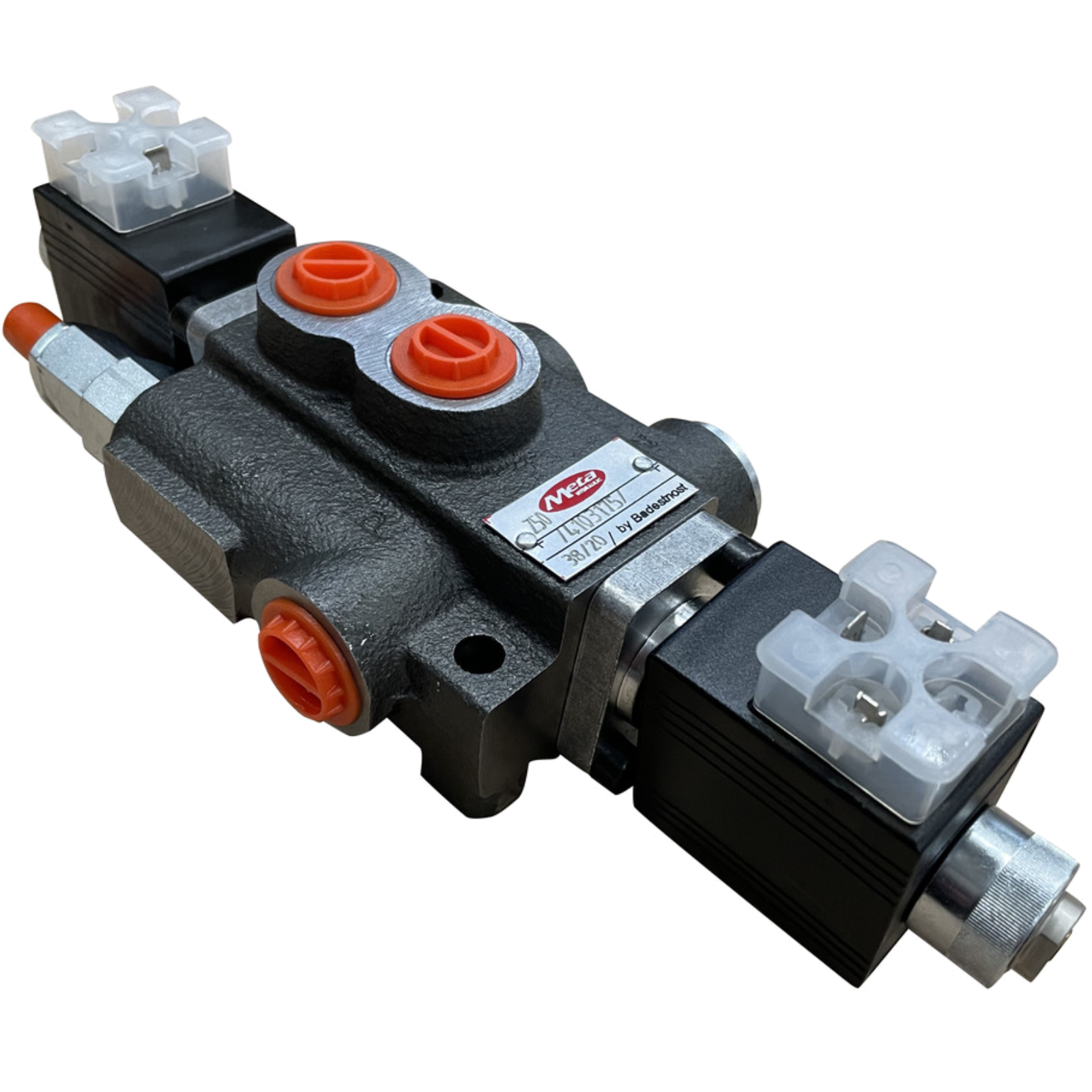

Meta Control valve 50/1 double-acting 12V actuation 0=SW
NEU
Meta Control valve 50/1 double-acting 12V actuation 0=SW
Beschreibung
Product information "Control valve 50/1 double-acting 12V actuation 0=SW "
Electromagnetic actuation with spring return to the centre position = floating position.
The centre position is designed with an unpressurised circulation and connections A, B are both open into the return flow.
Pressure relief valve on connection P (pump). Negative overlap of the gate valves.
Standard version of the valves in parallel connection.
Version: DE50
Max. flow rate: 50 litres/min
Operating pressure: 250 bar
Max. pressure: 300 bar
Pressure relief valve set: 100 bar, adjustable from 100-250 bar
Screw-in thread A, B: R3/8″
Screw-in thread P, P2, T, T2: R1/2″
H=lifting, 0=centre position = SW = floating position, S=lowering.
| 1st slider: | H/SW/S |
|---|---|
| 1st slider home position: | 0 |
| 1st slider version: | doppeltwirkend |
| Suchnummer: | 125184 |
