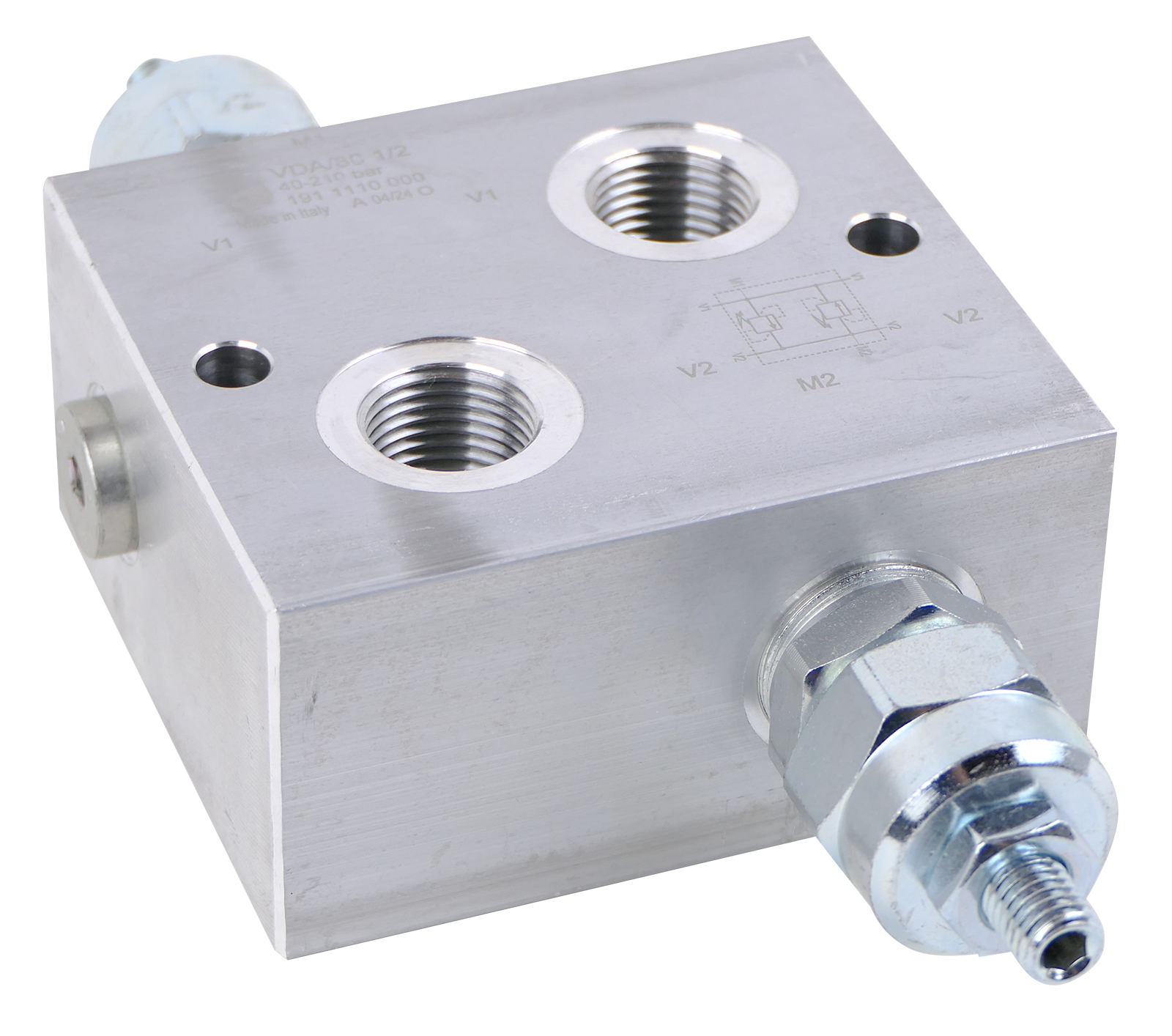

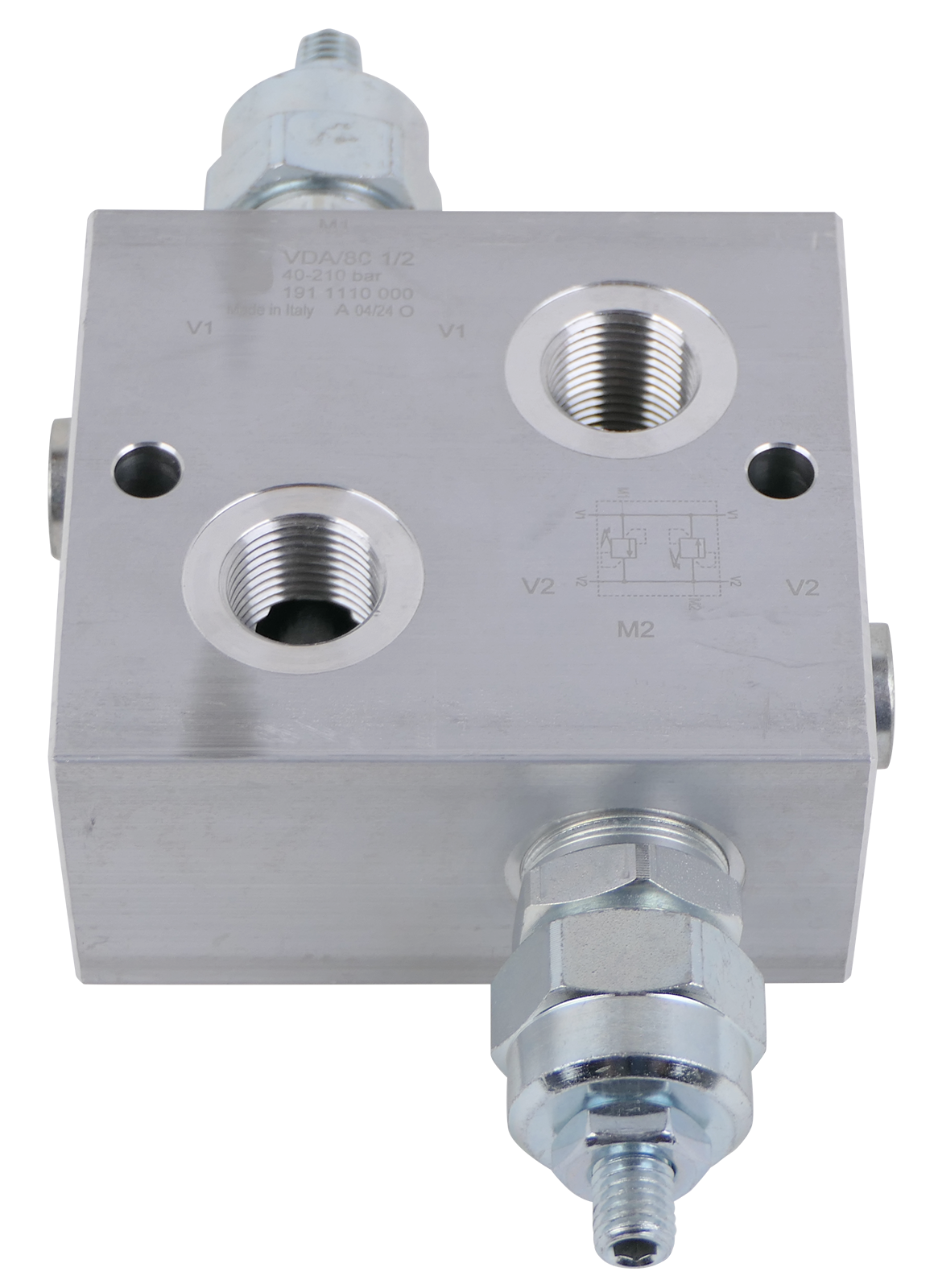

Double-acting shock valve, Flow rate 80 L/min, max. pressure 260 bar, with pressure gauge connection
Double-acting shock valve, Flow rate 80 L/min, max. pressure 260 bar, with pressure gauge connection
Beschreibung
Product information "Double-acting shock valve, Flow rate 80 L/min, max. pressure 260 bar, with pressure gauge connection"

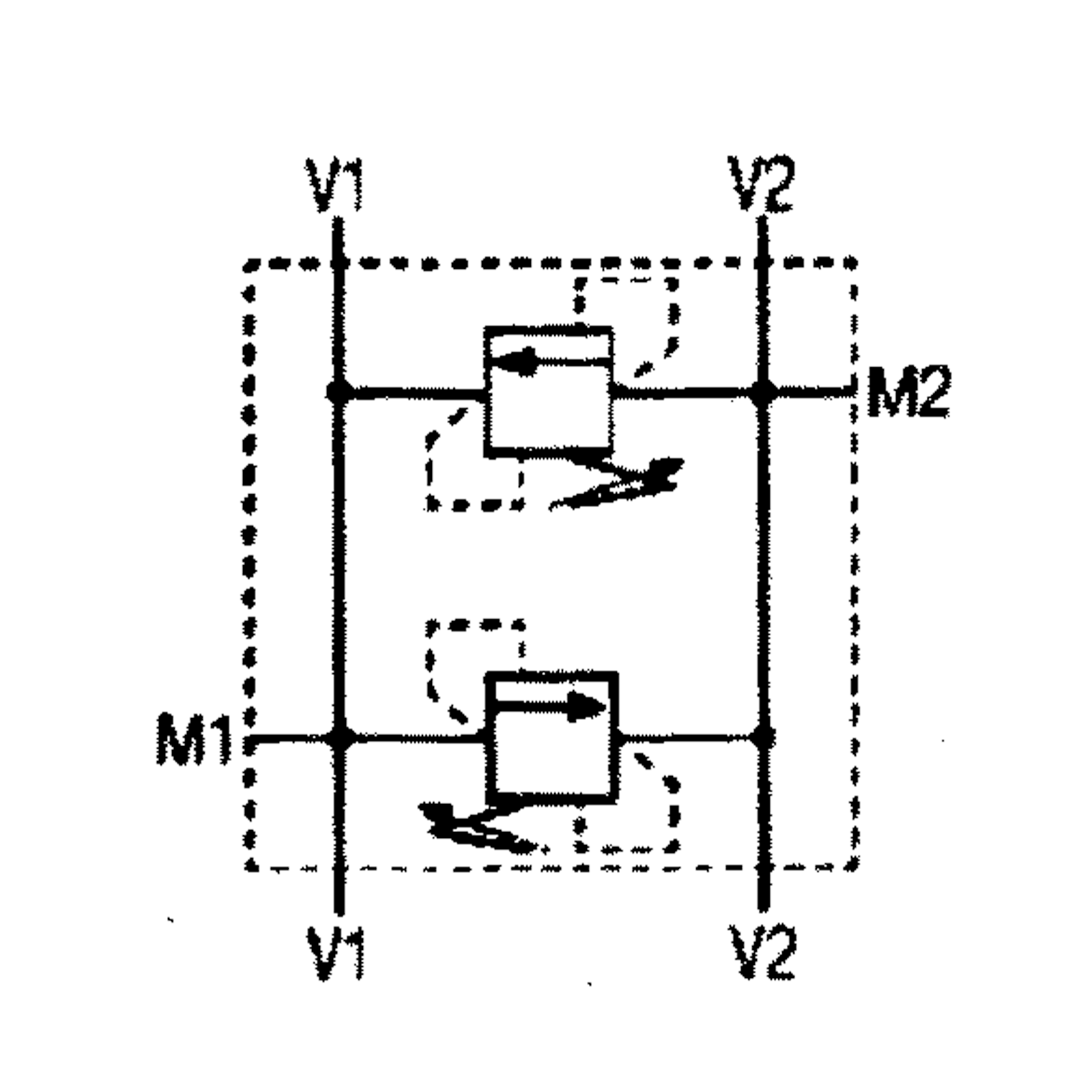

The valve is used for overpressure or overload protection in 2 pressure lines. It can be used both as a shock valve and as a pressure relief valve for continuous operation. The valve is an ideal protection against sudden pressure surges and enables the setting of different pressures at two inlets of the hydraulic system. The shock valve is used to protect hydraulic motors, synchronised cylinders and systems with the same stroke volume. For example, the protection of snow plough cylinders that are constantly exposed to external forces and loads during operation. Shock valves are positioned as close as possible to the consumer to be protected.
Adjustable pressure range: 40 - 210 bar

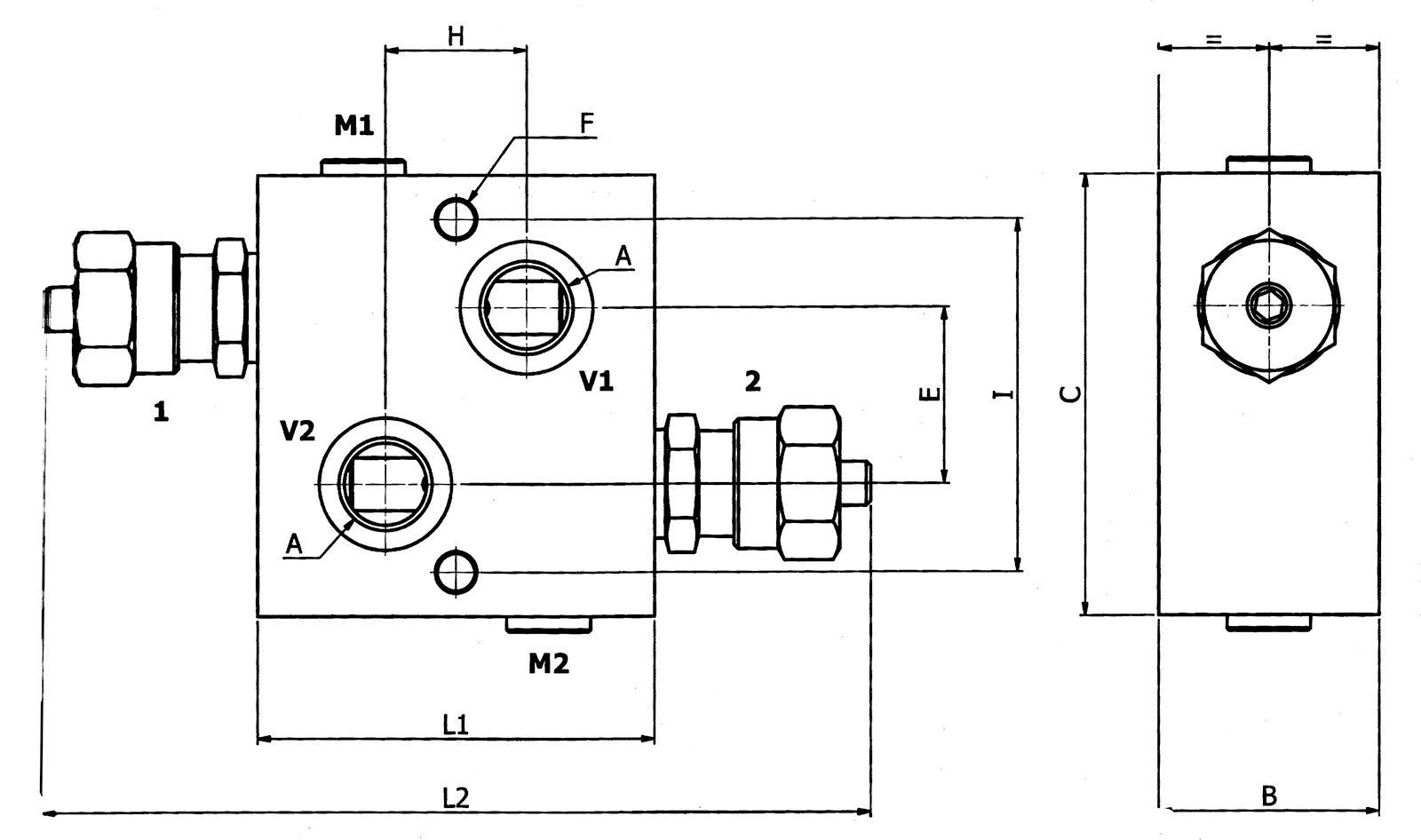

| B (mm): | 50 |
|---|---|
| C (mm): | 100 |
| E (mm): | 40 |
| F: | 8,5 |
| Flow rate (l/min): | 80 |
| G (mm): | 32 |
| H (mm): | 32 |
| I (mm): | 80 |
| L1 (mm): | 90 |
| L2 (mm): | 198 |
| Pressure range (bar): | 40 - 210 |
| Previous article: | 1596 |
| Thread: | R 1/2" |
