Hydraulic crane cable winch WE 700
Hydraulic crane cable winch WE 700
Product number:
FA112391
€849.00 *
Content:
1
Stück
detail.deliveryTimeAvailableHR
Produkt-Highlights
- einfache Montage!
Beschreibung
Product information "Hydraulic crane cable winch WE 700"

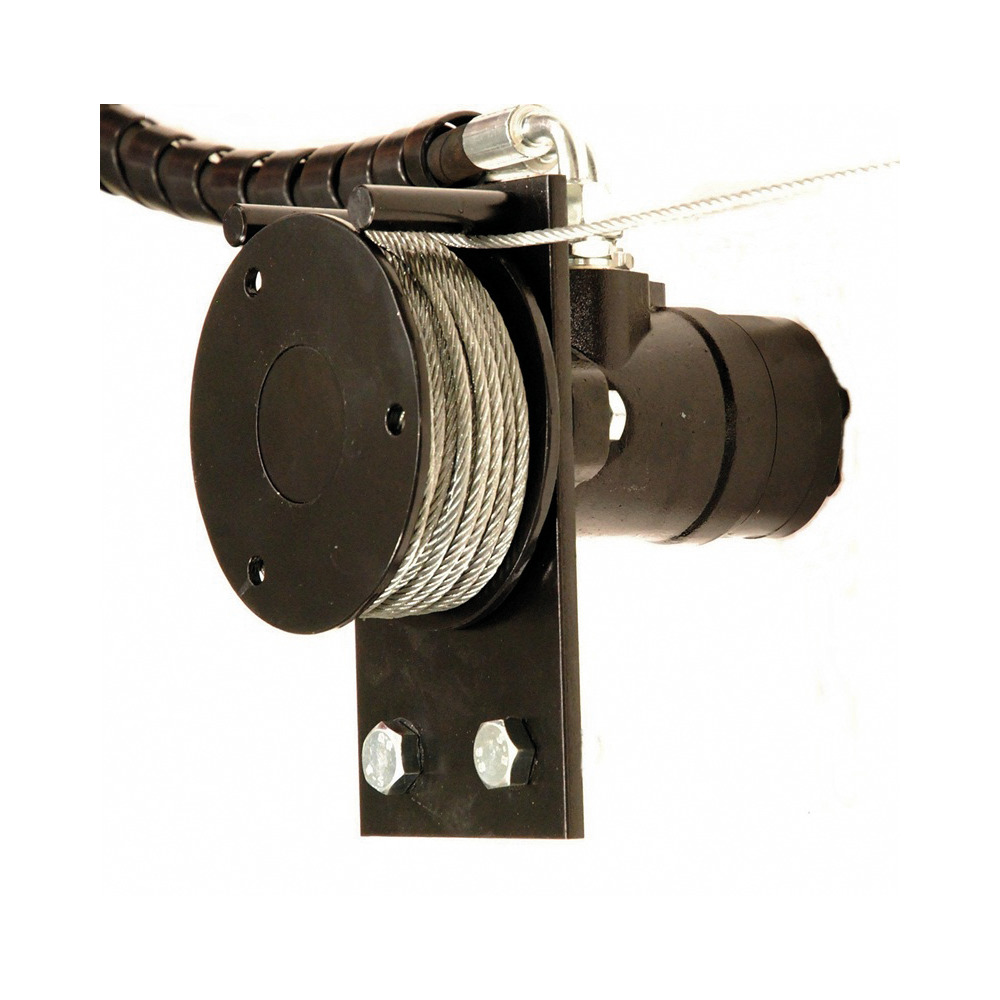

The light and compact auxiliary winch for mounting on cable winches or forwarding tongs, log splitters or even on a pole blade, ATV or small forwarding vehicle. The winch is pre-assembled on a plate with fasteners that can be easily mounted to your device. This crane winch is a robust construction and made for demanding use in the forest. Simply connect to a double-acting control device. Can be used for anything that needs to be pulled.
Compact crane winch - easy and quick assembly.
The maximum pulling force is a full 700 kg at a maximum of 175 bar.
The rope speed is 1.2 meters / second at 40 liters/min.
Connections: 3/8?AG/IG.
Dimensions of the winch approx. 24 x 24 x 15 cm, holding plate with 2 x 17 mm holes with 70 mm hole spacing.
<~cbht />~Drum: 60 mm inner and 150 mm outer diameter, 50 mm wide.

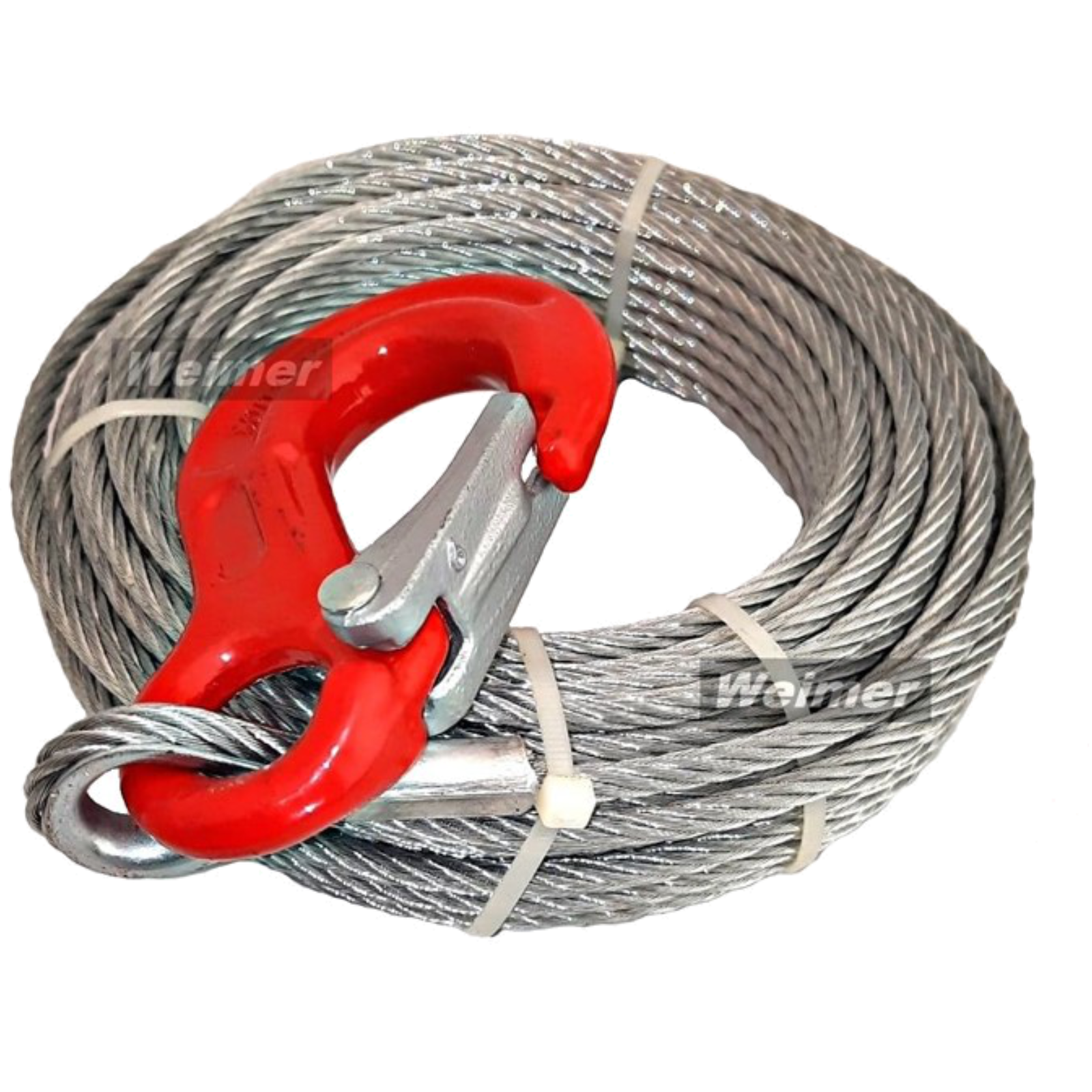

Winch We-700 with bracket and 20 meters of 5 mm wire rope.
Compact crane winch - easy and quick assembly.
The maximum pulling force is a full 700 kg at a maximum of 175 bar.
The rope speed is 1.2 meters / second at 40 liters/min.
Connections: 3/8?AG/IG.
Dimensions of the winch approx. 24 x 24 x 15 cm, holding plate with 2 x 17 mm holes with 70 mm hole spacing.
<~cbht />~Drum: 60 mm inner and 150 mm outer diameter, 50 mm wide.
Winch We-700 with bracket and 20 meters of 5 mm wire rope.
| Suchnummer: | 112391 |
|---|
Hersteller
Weimer Skogsteknik +
Ráskog
57591
Eksjö
SE
[email protected]
MPN:
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
#FA117662

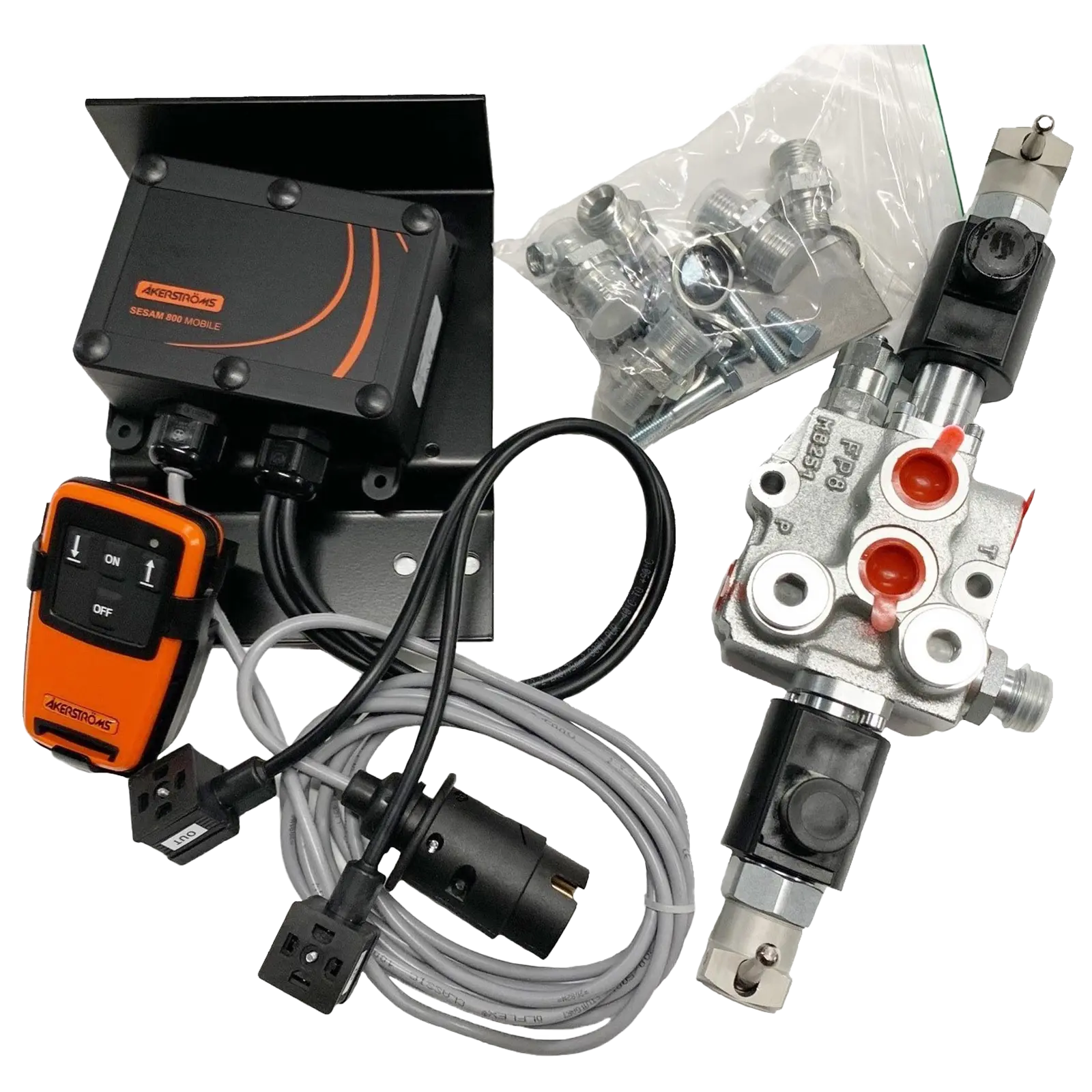

Hydraulic control valve with radio control
