Product information "Hydraulic crane winch WE 1700 with radio"

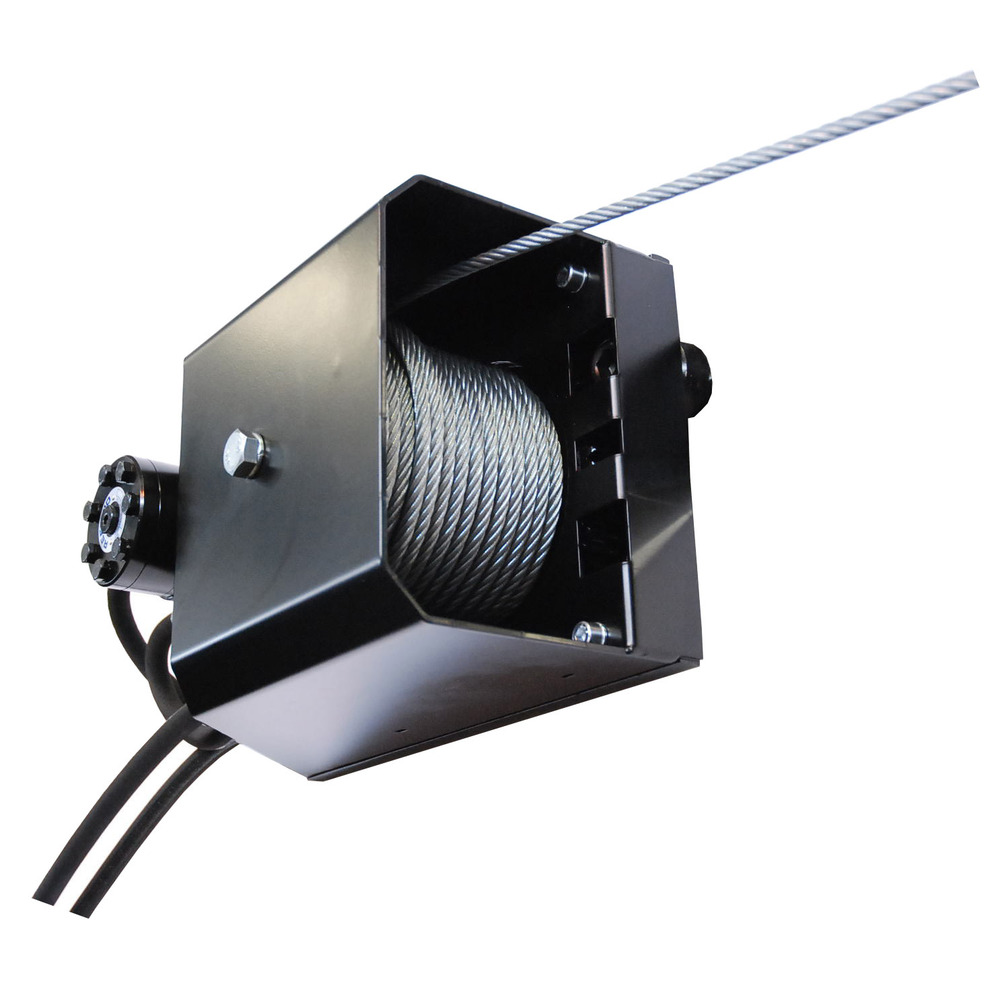

Crane auxiliary winch with radio control. Winch with gear reduction for higher pulling power. The reduction is released to pull it out.
The winch is pre-assembled in a metal housing - simply install it into a hydraulic circuit.
Control valve: 12 volt solenoid valve with additional manual operation,
<~cbht />~Valve with built-in pressure transfer and extra return,
<~cbht />~max. 40 liters/minute flow, max. 175 bar, connections 1/2?IG, pressure continuation 1/2?AG.
<~cbht />~Dimensions of the winch housing: 40 x 25 x 20 cm.
Can be used for anything that needs to be pulled.
For mounting on cable winches or forwarding wagons, a forestry crane, forwarding tongs or pile shield.
Many Kesla and Patu cranes already have the appropriate mounting holes !
Max.1700 kg pulling force at 175 bar,
The rope speed is 0.36 meters / second at 40 liters/min.

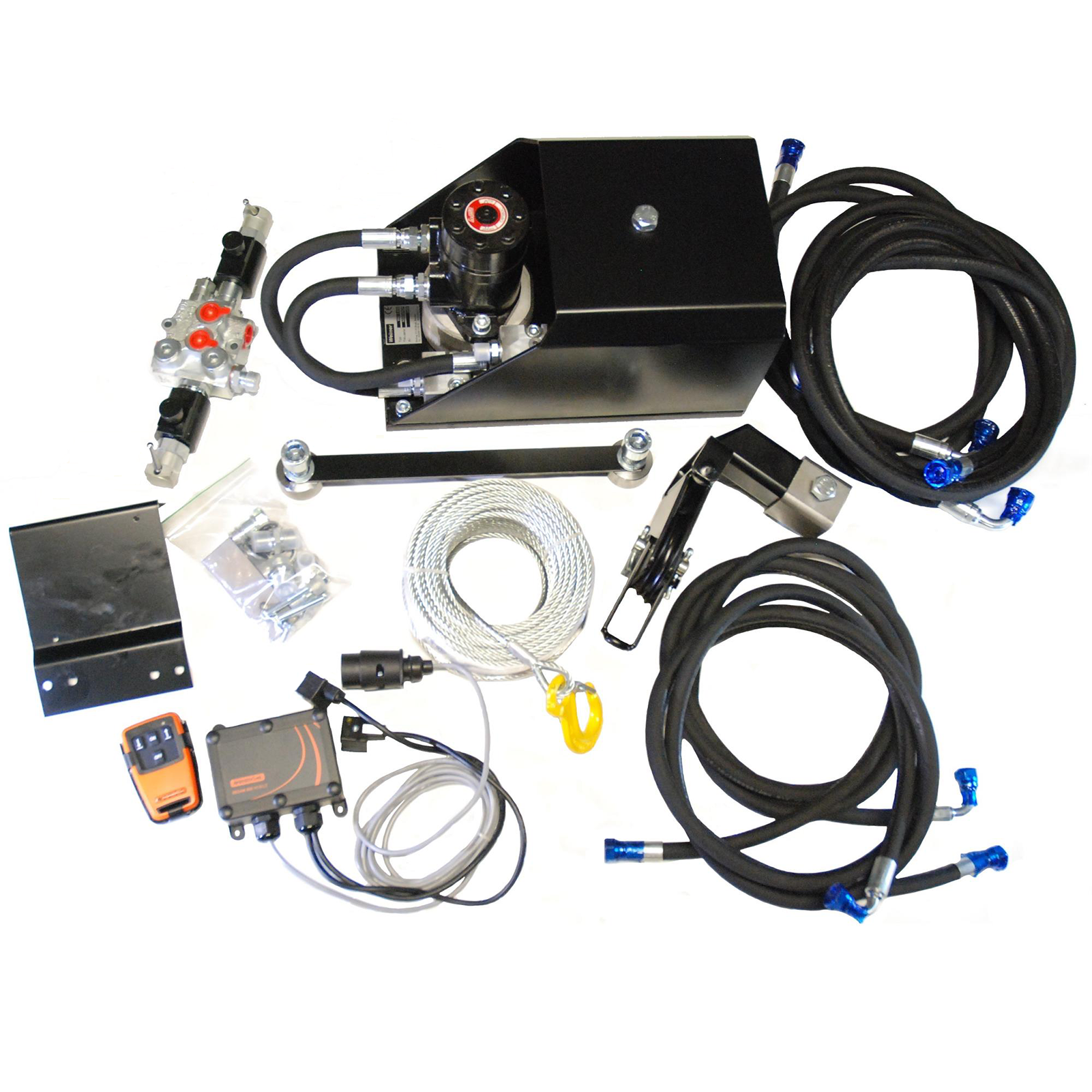

large drum with 35 meters of 8 mm wire rope with hooks. Complete set with hoses and HY plug, electro-magnetic valve with professional radio unit >
Fixed wired with 7-pin car plug.
The winch is pre-assembled in a metal housing - simply install it into a hydraulic circuit.
Control valve: 12 volt solenoid valve with additional manual operation,
<~cbht />~Valve with built-in pressure transfer and extra return,
<~cbht />~max. 40 liters/minute flow, max. 175 bar, connections 1/2?IG, pressure continuation 1/2?AG.
<~cbht />~Dimensions of the winch housing: 40 x 25 x 20 cm.
Can be used for anything that needs to be pulled.
For mounting on cable winches or forwarding wagons, a forestry crane, forwarding tongs or pile shield.
Many Kesla and Patu cranes already have the appropriate mounting holes !
Max.1700 kg pulling force at 175 bar,
The rope speed is 0.36 meters / second at 40 liters/min.
large drum with 35 meters of 8 mm wire rope with hooks. Complete set with hoses and HY plug, electro-magnetic valve with professional radio unit >
Fixed wired with 7-pin car plug.
