Hydraulic cylinder double-acting 80/50/250mm with welded ball eyes � 25.4mm
22 %
Hydraulic cylinder double-acting 80/50/250mm with welded ball eyes � 25.4mm
Product number:
FA27846
€159.00 *
% €205.00* (22.44% saved) before: €205.00
Content:
1
Stück
detail.deliveryTimeAvailableHR
Sale - Only while stocks last!
Our best price - No further discount possible!
Beschreibung
Product information "Hydraulic cylinder double-acting 80/50/250mm with welded ball eyes � 25.4mm"
Compressive force 9047 kg, tensile force 5513 kg at 180 bar, connection G 1/2, nominal pressure 250 bar

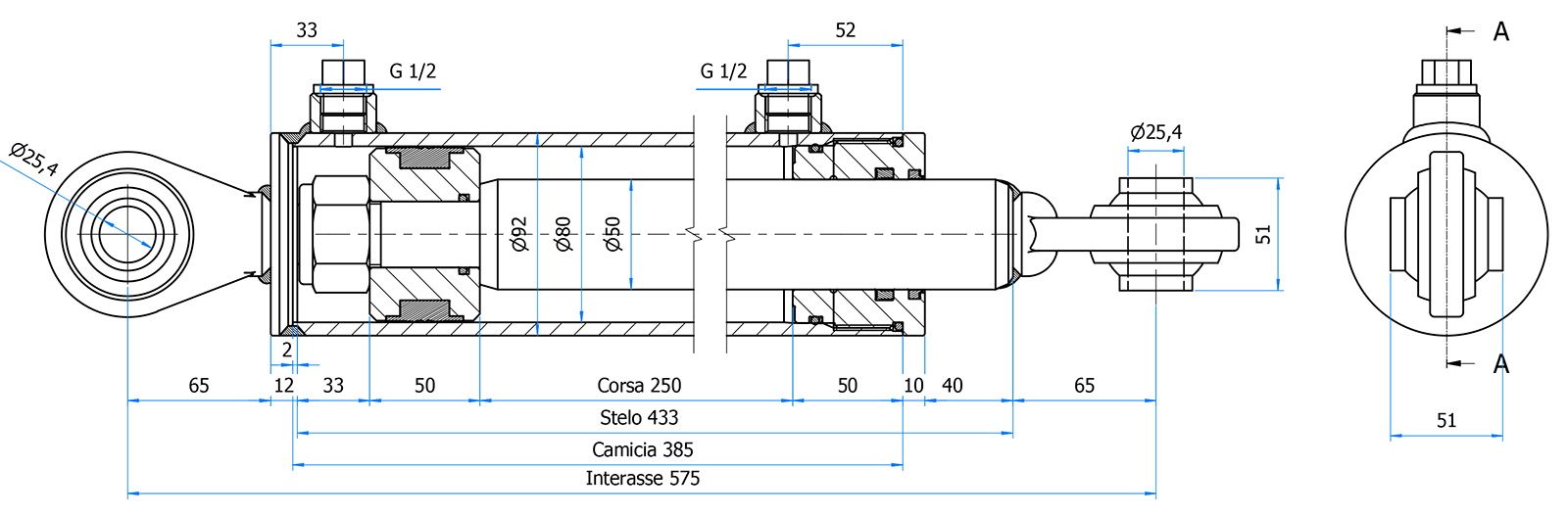

With welded ball eye on both sides 25.4 mm and an installation length of 575 mm, measured at the ball eye center/ball eye center.
With welded ball eye on both sides 25.4 mm and an installation length of 575 mm, measured at the ball eye center/ball eye center.
| Ball eye width (mm): | 51 |
|---|---|
| Installation length EL (mm): | 575 |
| Stroke (mm): | 250 |
| Suchnummer: | 27846 |
| Thread: | 1/2" IG |
| Ø bolt (mm): | 25,4 |
| Ø outer pipe (R)(mm): | 92 |
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
Downloads
There are no downloads available for this article
