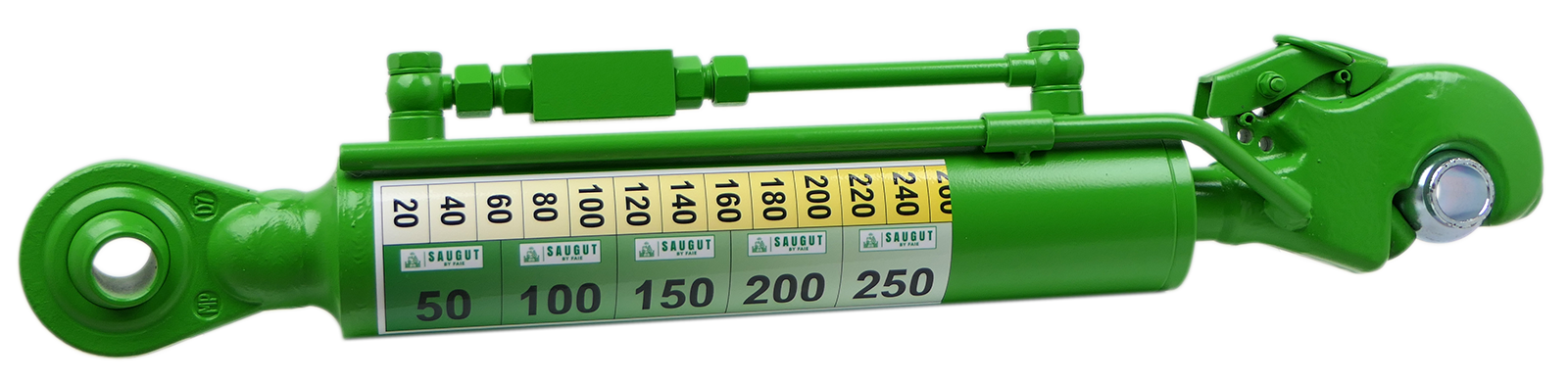

SAUGUT Hydraulic top link Cat.2 with catch hook and ball eye, stroke 250mm
SAUGUT Hydraulic top link Cat.2 with catch hook and ball eye, stroke 250mm
Product number:
FA120652
€209.00 *
Content:
1
Stück
detail.deliveryTimeAvailableHR
Produkt-Highlights
- Hochwertige Verarbeitung
- Robust und langlebig
- Einfach zu montieren und zu bedienen
- Vielseitig einsetzbar
Beschreibung
Product information "Hydraulic top link Cat.2 with catch hook and ball eye, stroke 250mm"
The hydraulic top link Cat.2 SAUGUT from FAIE with catch hook and ball eye is a high-quality product that is suitable for a variety of applications. The top link has a stroke of 250 mm, a piston diameter (inner cylinder tube) of 70 mm and a piston rod diameter of 35 mm. The hydraulic top link can be used on tractors up to approx. 120 HP, has a pressure force of 6927 kg and a pulling force of 5195 kg.
The top link is complete with connecting hoses(length 1m), Control chain equipped with catch hook, top link ball and stroke indicator. It also has a hydraulically unlockable check valve (locking block). ~
The hydraulic top link from the SAUGUT series from FAIE is a robust and reliable product that is designed for a long service life. It is easy to assemble and operate and offers excellent performance.
Piston K = 70mm, piston rod S 35mm up to approx. 120HP, pressure force approx. 6927kg, tensile force approx. 5195kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
The top link is complete with connecting hoses(length 1m), Control chain equipped with catch hook, top link ball and stroke indicator. It also has a hydraulically unlockable check valve (locking block). ~
The hydraulic top link from the SAUGUT series from FAIE is a robust and reliable product that is designed for a long service life. It is easy to assemble and operate and offers excellent performance.
Piston K = 70mm, piston rod S 35mm up to approx. 120HP, pressure force approx. 6927kg, tensile force approx. 5195kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
| A (mm): | 85 |
|---|---|
| B (mm): | 95 |
| Ball eye width (mm): | 51 |
| Installation length EL (mm): | 605 |
| Length max (mm): | 855 |
| Length min (mm): | 605 |
| Stroke (mm): | 250 |
| Suchnummer: | 120652 |
| Ø bolt (mm / cat.): | 25,4/2 |
| Ø outer pipe (R)(mm): | 80 |
