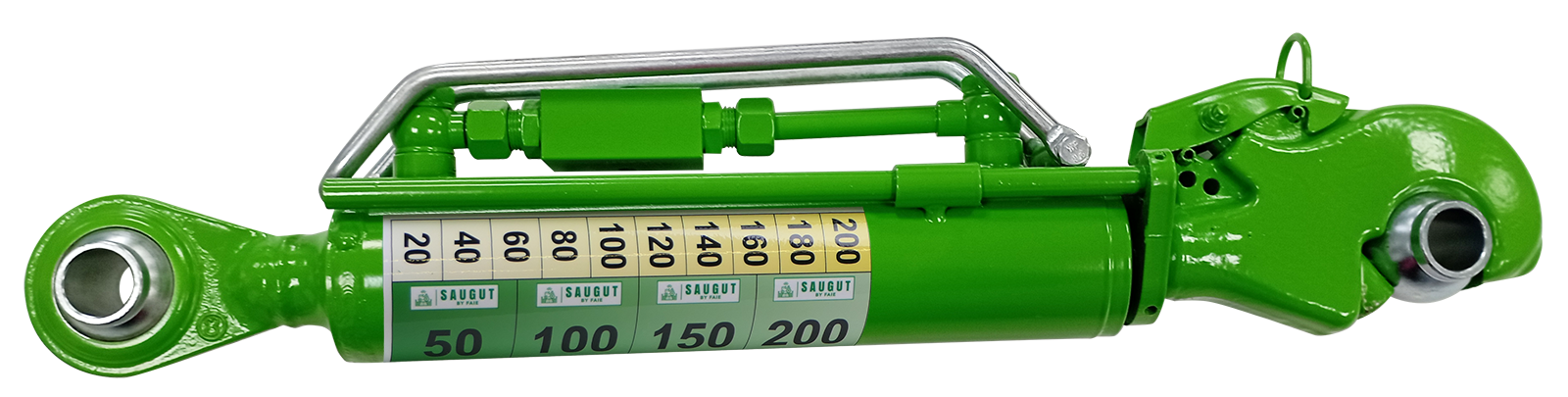

SAUGUT Hydraulic top link Cat.2 with catch hook, ball eye and top link bracket, stroke 200mm
SAUGUT Hydraulic top link Cat.2 with catch hook, ball eye and top link bracket, stroke 200mm
Beschreibung
Product information "Hydraulic top link Cat.2 with catch hook, ball eye and top link bracket, stroke 200mm"
The hydraulic top link Cat.2 SAUGUT from FAIE with catch hook and ball eye is a high-quality product that is suitable for a variety of applications. The top link has a stroke of 200 mm, a piston diameter (inner cylinder tube) of 60 mm and a piston rod diameter of 35 mm. The hydraulic top link can be used on tractors up to approx. 90 HP, has a pressure force of 5100 kg and a pulling force of 3620 kg.
The top link is complete with connecting hoses(length 1m), Control chain for catch hook, top link ball and stroke indicator as well as a top link bracket. It also has a hydraulically unlockable check valve (locking block). ~
The hydraulic top link from the SAUGUT series from FAIE is a robust and reliable product that is designed for a long service life. It is easy to assemble and operate and offers excellent performance.
Piston K = 60mm, piston rod S 35mm up to approx. 90HP, pressure force approx. 5100kg, tensile force approx. 3620kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
The top link is complete with connecting hoses(length 1m), Control chain for catch hook, top link ball and stroke indicator as well as a top link bracket. It also has a hydraulically unlockable check valve (locking block). ~
The hydraulic top link from the SAUGUT series from FAIE is a robust and reliable product that is designed for a long service life. It is easy to assemble and operate and offers excellent performance.
Piston K = 60mm, piston rod S 35mm up to approx. 90HP, pressure force approx. 5100kg, tensile force approx. 3620kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
| A (mm): | 75 |
|---|---|
| B (mm): | 90 |
| Ball eye width (mm): | 51 |
| Installation length EL (mm): | 535 |
| Length max (mm): | 735 |
| Length min (mm): | 535 |
| Stroke (mm): | 200 |
| Suchnummer: | 123679 |
| Ø bolt (mm / cat.): | 25,4/2 |
| Ø outer pipe (R)(mm): | 70 |
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
