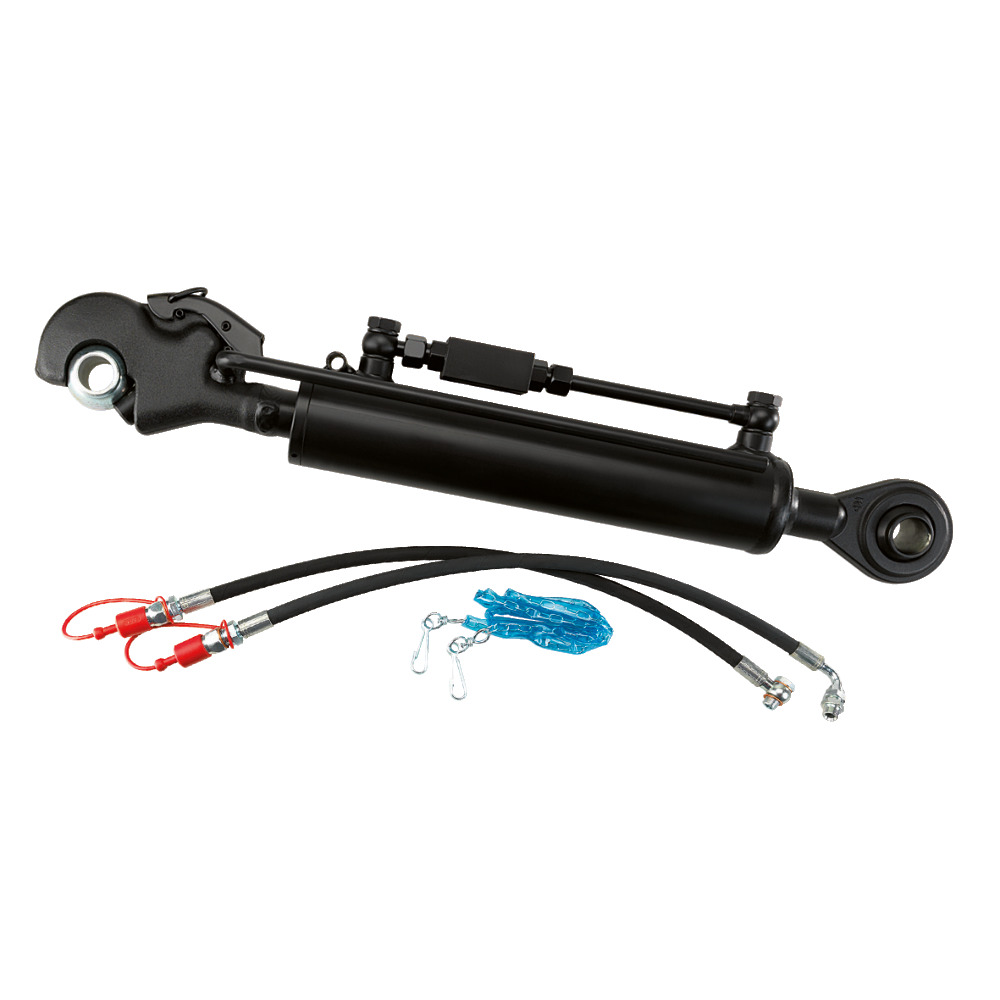

Hydraulic top link with catch hook Cat.3 and ball eye Cat.3 (32.2mm)
Hydraulic top link with catch hook Cat.3 and ball eye Cat.3 (32.2mm)
Sale - Only while stocks last!
Our best price - No further discount possible!
Beschreibung
Product information "Hydraulic top link with catch hook Cat.3 and ball eye Cat.3 (32.2mm)"
Top link ball Cat. 3/2 (25.4mm), ball eye Cat. 3 (32.2mm)
Complete with connection hoses, timing chain for catch hook, top link ball Cat. 3/2 (25.4mm) and Stroke indicator. Includes hydraulically unlockable check valve (locking block). Piston K = 70mm, piston rod S = 36mm, up to approx. 140HP, pressure force 6927kg, pulling force 5195kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
Complete with connection hoses, timing chain for catch hook, top link ball Cat. 3/2 (25.4mm) and Stroke indicator. Includes hydraulically unlockable check valve (locking block). Piston K = 70mm, piston rod S = 36mm, up to approx. 140HP, pressure force 6927kg, pulling force 5195kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
| A (mm): | 96 |
|---|---|
| B (mm): | 105 |
| Ball eye width (mm): | 51 |
| Installation length EL (mm): | 666 |
| Length max (mm): | 916 |
| Length min (mm): | 666 |
| Stroke (mm): | 250 |
| Ø bolt (mm / cat.): | 32,3/3 |
| Ø outer pipe (R)(mm): | 80 |
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
#FA63604

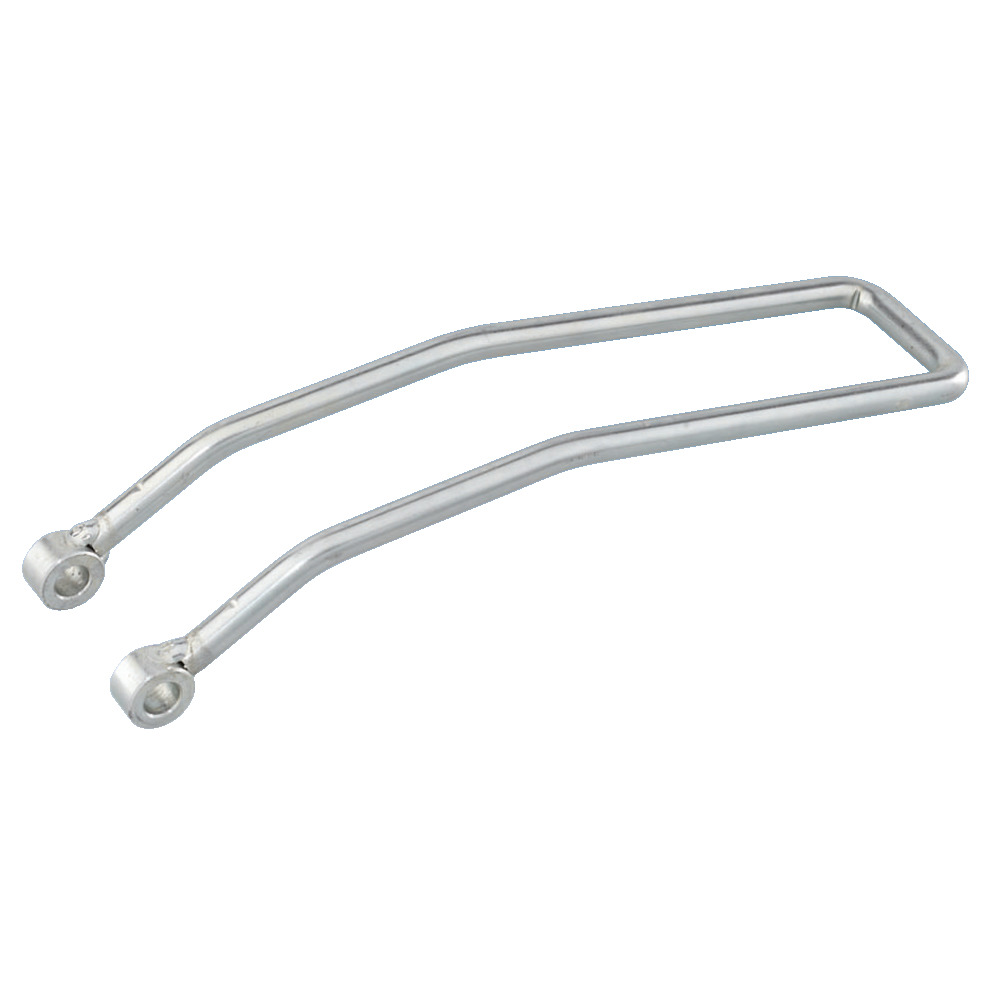

Top link bracket 255mm universal, bore � 10.5 mm
Sale and shipment by: FAIE Handels GmbH
Top link bracket 255mm universally usable Bore diameter 10.5 mmLength from center of hole on bracket inside 255mm
#FA51762

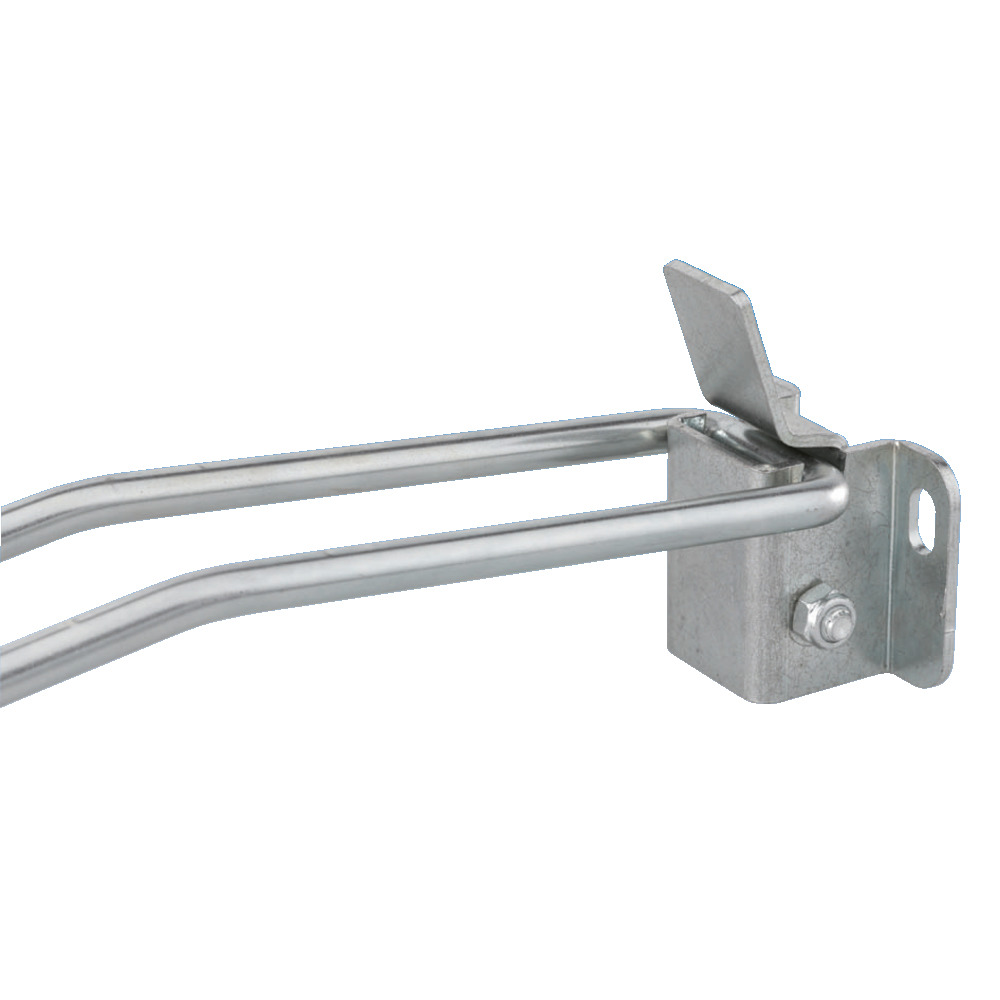

Bracket on the tractor side for hydraulic top links
