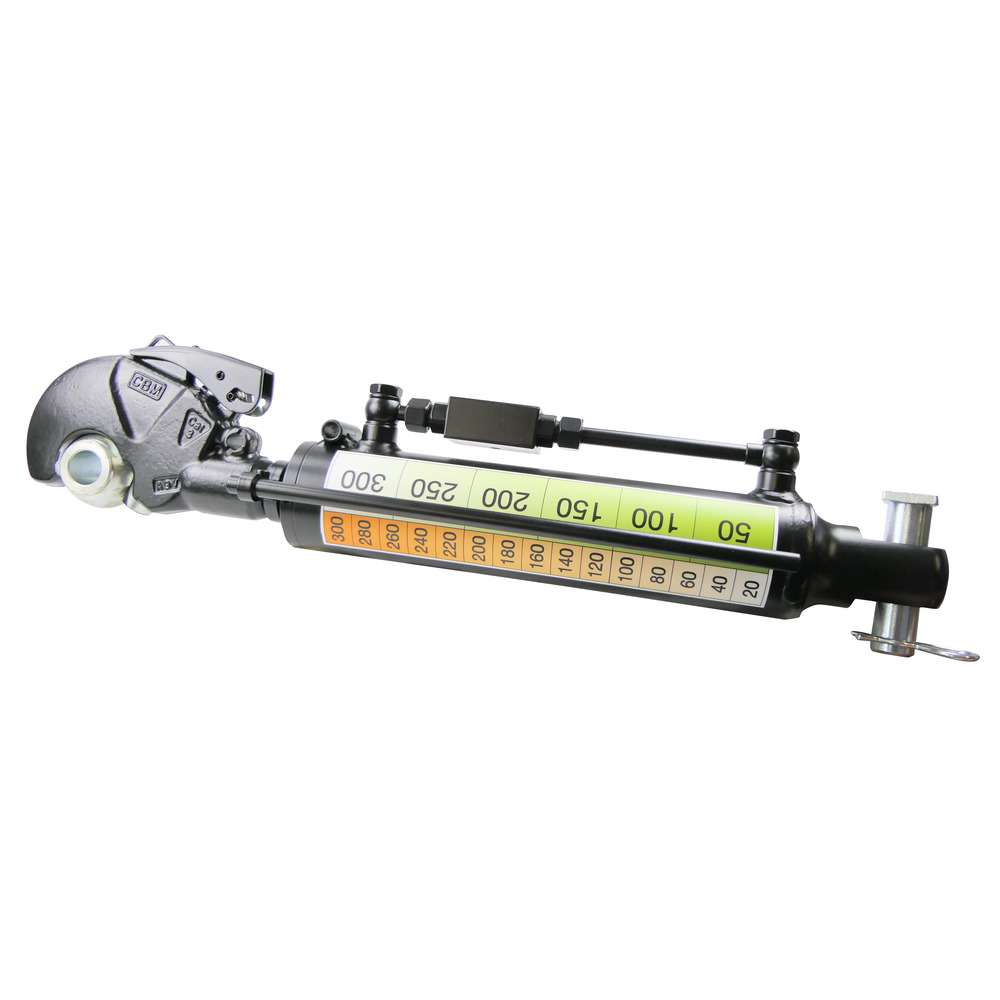

Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head
Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head
Produkt-Highlights
- Komplett ausgestattet mit allen Zubehörteilen !
- Einfache Anpassung des Oberlenkers an jedes Anbaugerät !
- Verstellung der Oberlenkerlänge vom Traktor/Sc
Beschreibung
Product information "Hydraulic top link with CBM catch hook Cat.3 and with bolt for the joint head"
Suitable for tractor sup to approx. 140 HP, piston K = 70mm, piston rod S = 36mm, pressure force 6927kg, pulling force 5195kg. CBM catch hook cat. 3 with ball cat. 3/2 25 mm, bolt 28 mm for joint head mount. Including hydraulically unlockable check valve (locking block), 2 hydraulic hoses with plug and dust caps, actuation chain for catch hook and lift indicator.
Indication of the installation length including joint head.Please order the joint head that fits your top link bolt on the tractor/tractor with bore 25mm (Faie No. 102310), 28mm (Faie No. 102311) or 32mm (Faie No. 102312).
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
Indication of the installation length including joint head.Please order the joint head that fits your top link bolt on the tractor/tractor with bore 25mm (Faie No. 102310), 28mm (Faie No. 102311) or 32mm (Faie No. 102312).
The specified lengths always refer to bolt centre to bolt centre including the knuckle !
| A (mm): | 100 |
|---|---|
| B (mm): | 140 |
| Installation length EL (mm): | 647 |
| Stroke (mm): | 210 |
| Ø outer pipe (R)(mm): | 80 |
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
Downloads
pros_hy-oberlenker.pdf
