Schweißkraft Inverter Craft Stick 161P
Schweißkraft Inverter Craft Stick 161P
Produkt-Highlights
- für alle gängigen Elektroden
- moderne Inverter Technologie
- Gewicht nur 6,1kg
- Komplett Set
Beschreibung
Product information "Inverter Craft Stick 161P"
Modern, robust welding inverter for quick and easy welding of all common standard electrodes.

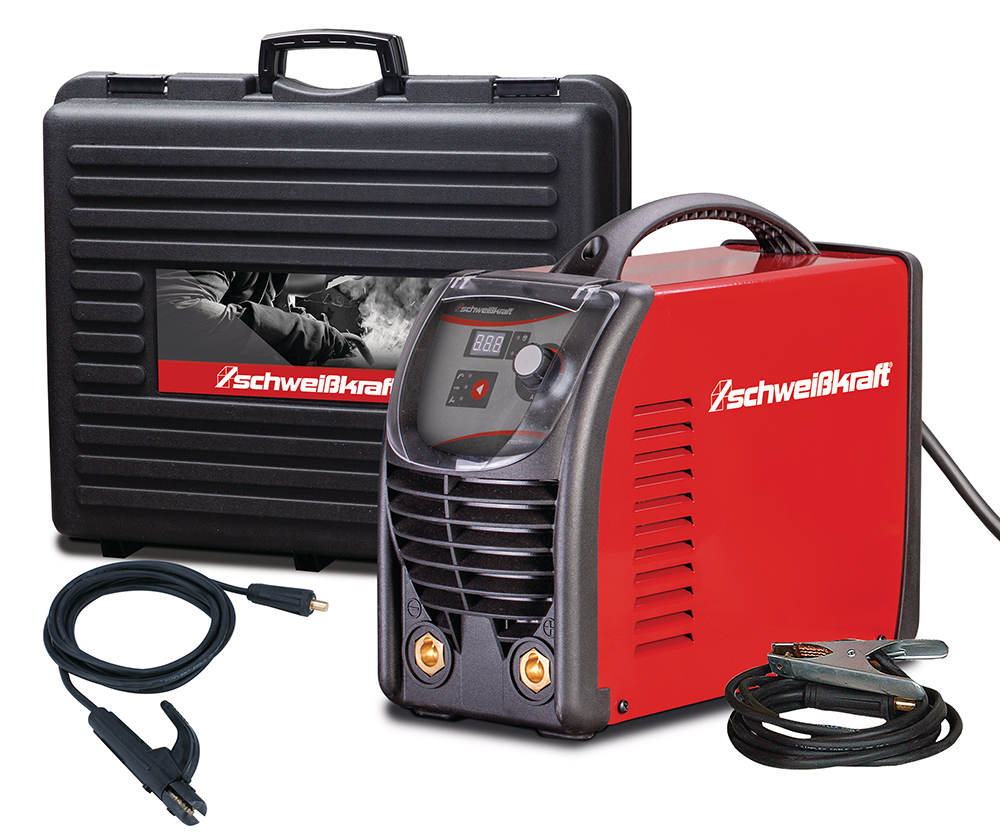

Complete incl. 3m welding cable 16mm with electrode holder and 3m ground cable 16mm with ground terminal 200A
Complete incl. 3m welding cable 16mm with electrode holder and 3m ground cable 16mm with ground terminal 200A
- Devices with PFC (power factor correction), VRD (voltage reduction when idle)
- TIG DC function = enables easy TIG welding with contact ignition

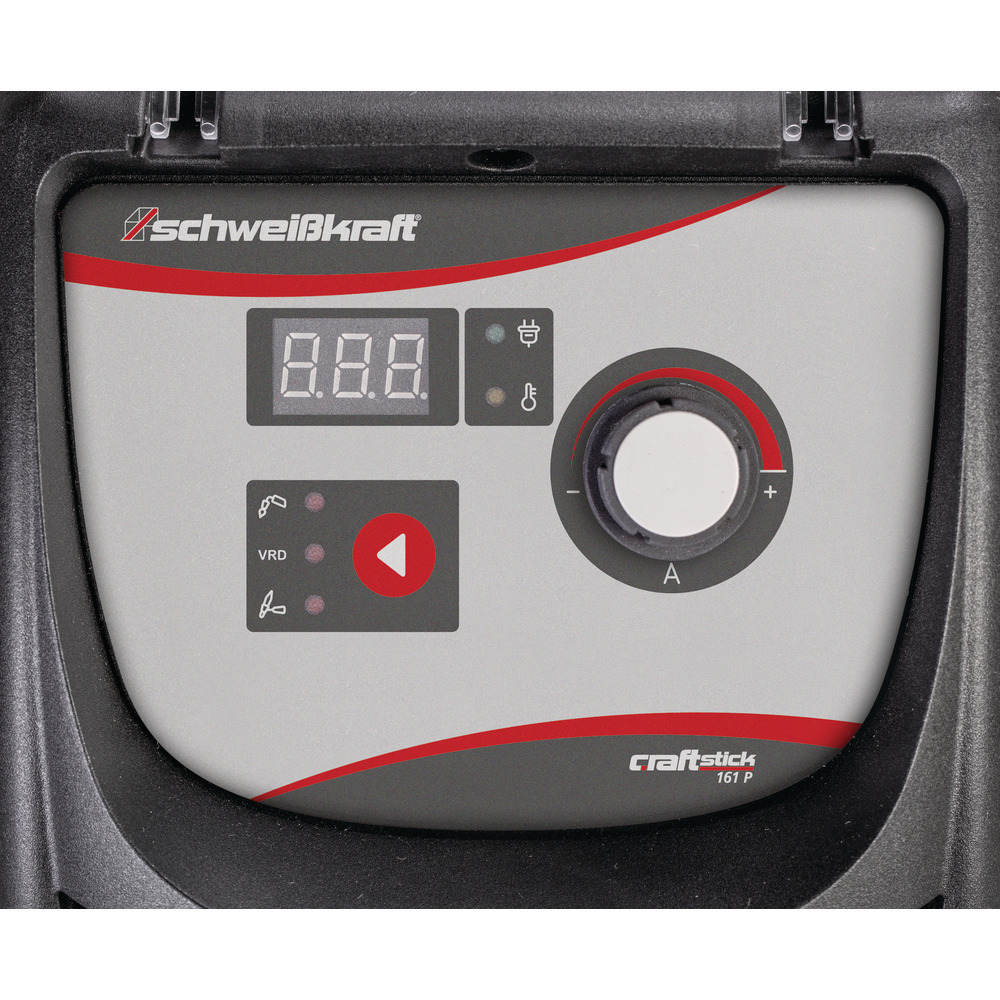

- Precise setting of the welding parameters via digital display
- Universally usable for welding anything common electrode types
- Constant deposition performance is achieved through constant welding current
- All devices are constructed using modern inverter technology
- This allows small and light electrode devices to be manufactured
- This makes it ideal for assembly work (on ladders, on scaffolding, etc.) and, thanks to protection class IP 23, generally also for outdoor work.
- At least 30% ED for all devices. < li>Thanks to the quietly running built-in fans, the heat is dissipated well from the devices and thus a long duty cycle is achieved
- Hot Start: By automatically briefly increasing the welding current, the arc ignites safely and is immediately stable
- Anti-Stick If the electrode accidentally sticks, the welding current is automatically reduced, thus preventing the electrode from burning out
- Arc force control: Internal monitoring of the welding current and welding voltage prevents short circuits quickly and safely dissolved
- This stabilizes the arc and the electrode can be processed without any problems
- Length: 365mm
- Width / depth: 150mm
- Height: 28mm
- Weight: 6.1kg
- Connection voltage: 160-275V
- Type of power: AC
- Mains frequency: 50/60Hz
- Power consumption: MMA 22 / TIG15
- Total output: 5/3.5kVA
- Standard: IEC 60974-1:2012
- Protection level: IP23
- Insulation class: H
- EMC class: A
- Marking: CE< /li>
- Required generator power: >~5kVA
- Power plug: 16A
- Open circuit voltage: 14.5V
- Weldable electrodes: 1.6-4, 0mm
- Adjustable electrode: 10-160A
- Duty cycle at max. current 40C electrode: 30%
- Current at ED 100% 40C electrode: 90A
- Power consumption electrode: 5kVA
- Sheet thicknesses: 1.0mm - 7.0mm
| Suchnummer: | 103286 |
|---|
