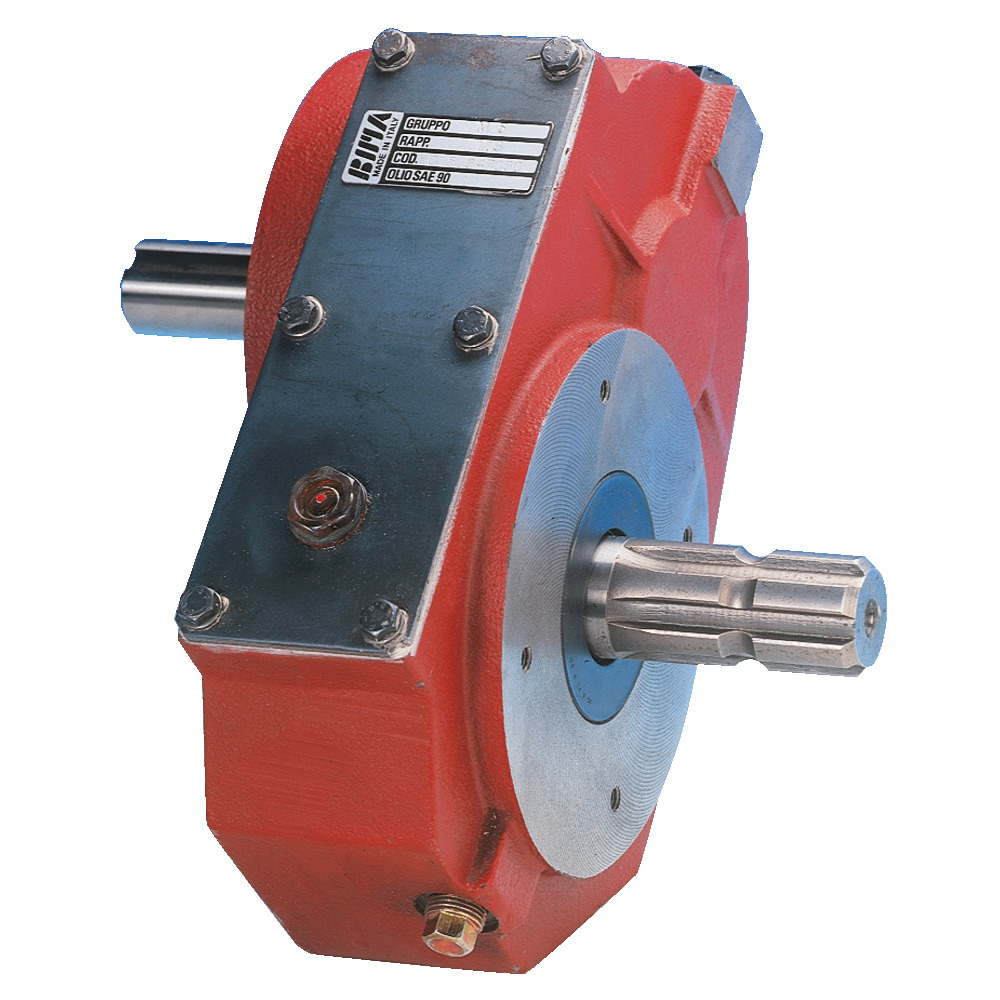

Bondioli & Pavesi M5 transmission gear
Bondioli & Pavesi M5 transmission gear
Beschreibung
Product information "M5 transmission gear"
For various types of applications, especially in agriculture. Small dimensions and low weight. Easy maintenance. The gearboxes are delivered without oil filling. General technical data:

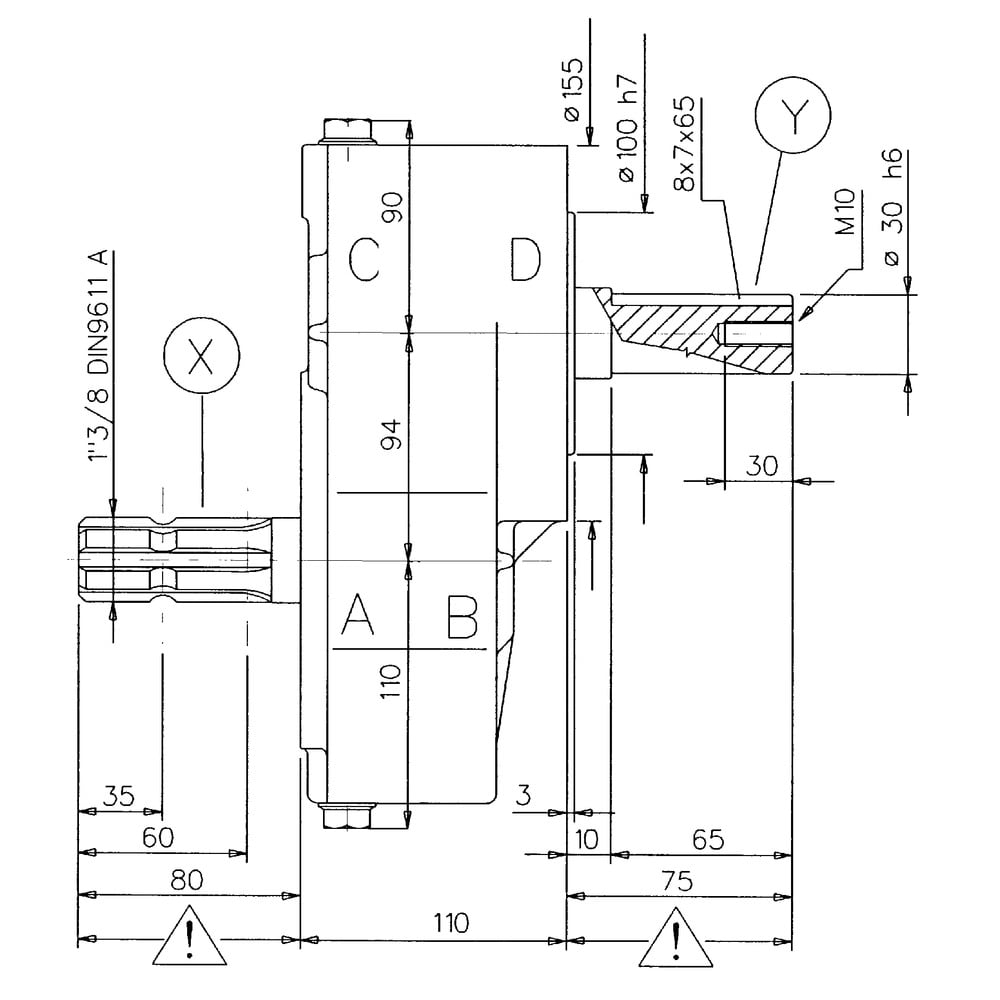

~Input connection: 1 3/8"
~Output connection: 30 h6
~Reversal of direction of rotation: yes

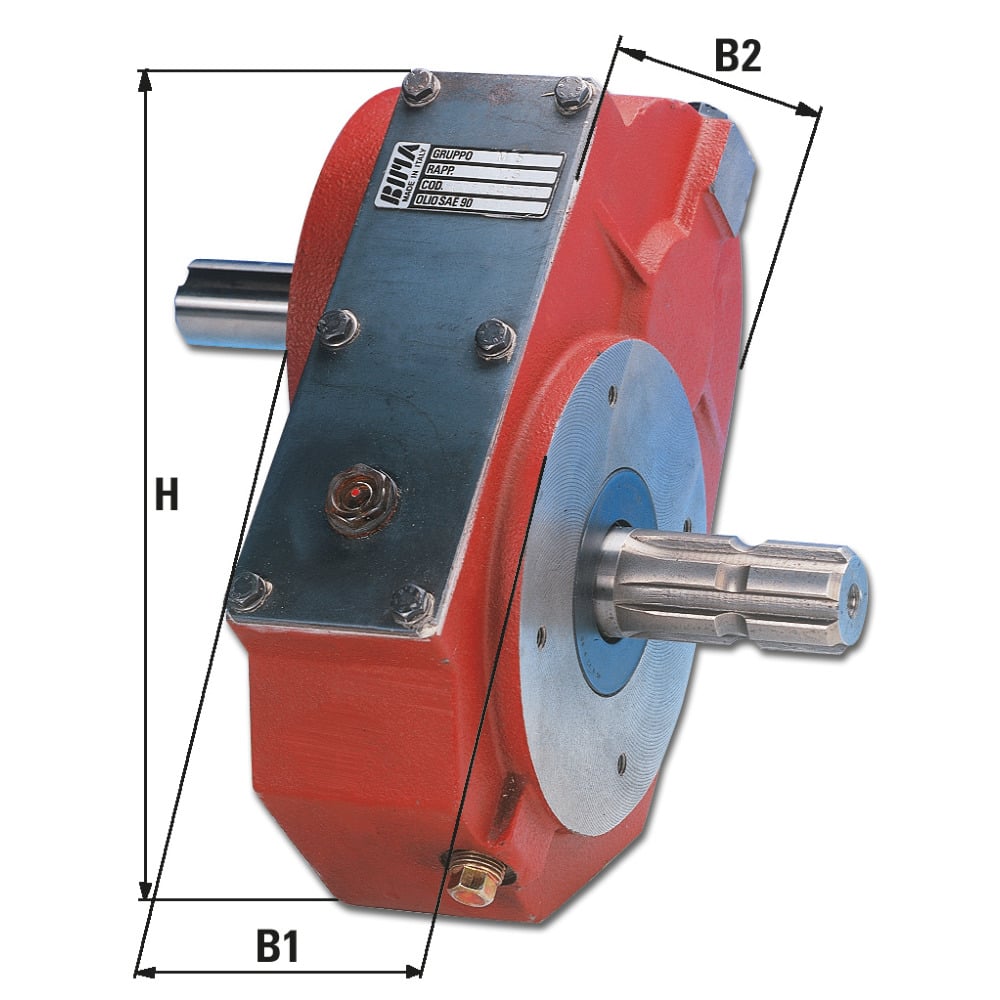

~Height H: 294 mm
~Width B1: 110 mm
~Width B2: 215 mm
In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
~Input connection: 1 3/8"
~Output connection: 30 h6
~Reversal of direction of rotation: yes
~Height H: 294 mm
~Width B1: 110 mm
~Width B2: 215 mm
In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
| Input speed (rpm): | 540 |
|---|---|
| Output speed (rpm): | 2700 |
| Power (kW): | 25,7 |
| Torque input (Nm): | 464 |
| Torque output (Nm): | 91 Nm |
| Translation: | 1:5 |
Hersteller
Bondioli + Pavesi
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
MPN:
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
#FA47664
Gear oil SEA90, GL 5
Sale and shipment by: FAIE Handels GmbH
1 liter (for spur gears)
NEU
#FA123318

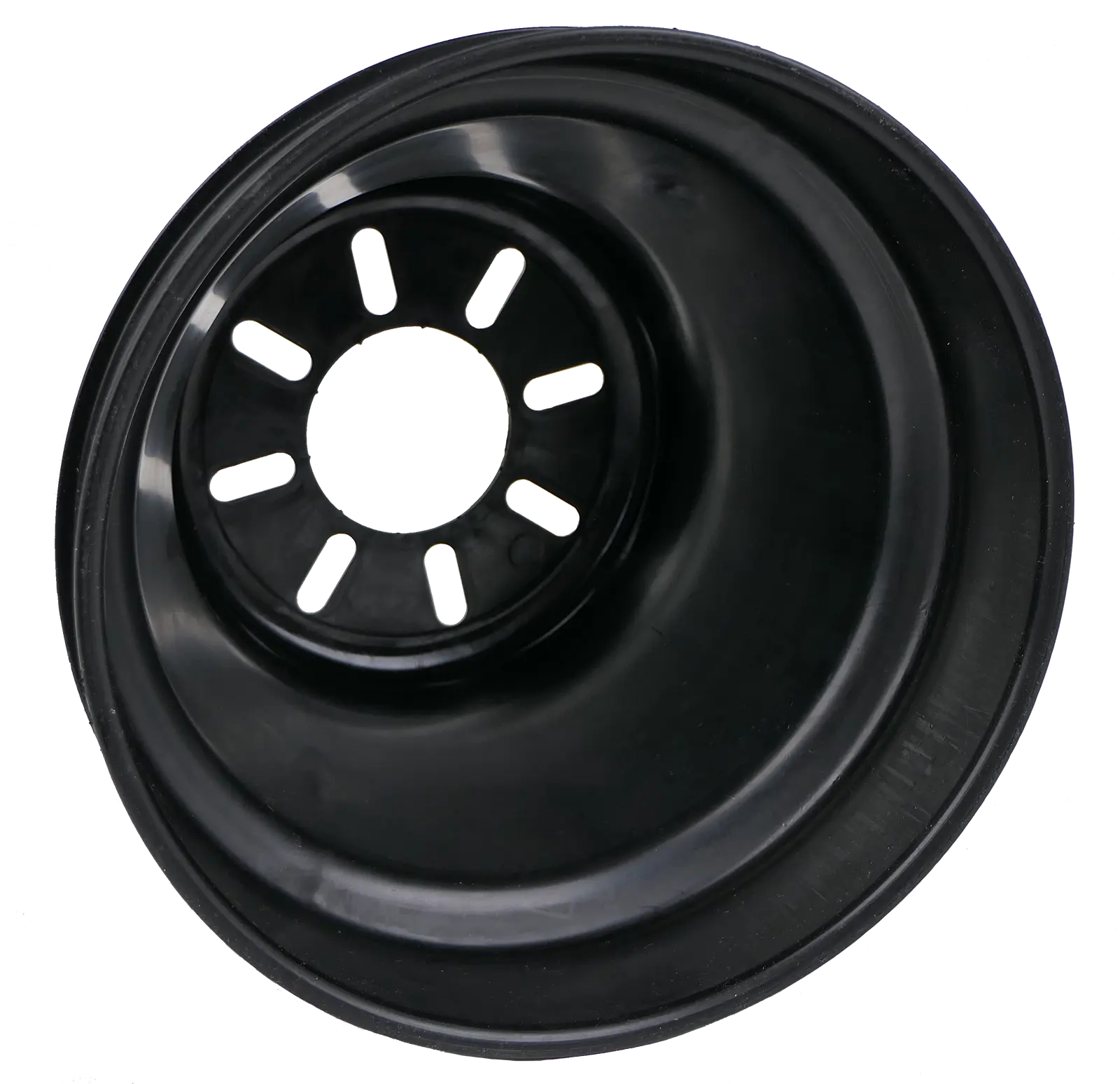

Protection pot on appliance side ø240mm with slotted holes 9x24mm
