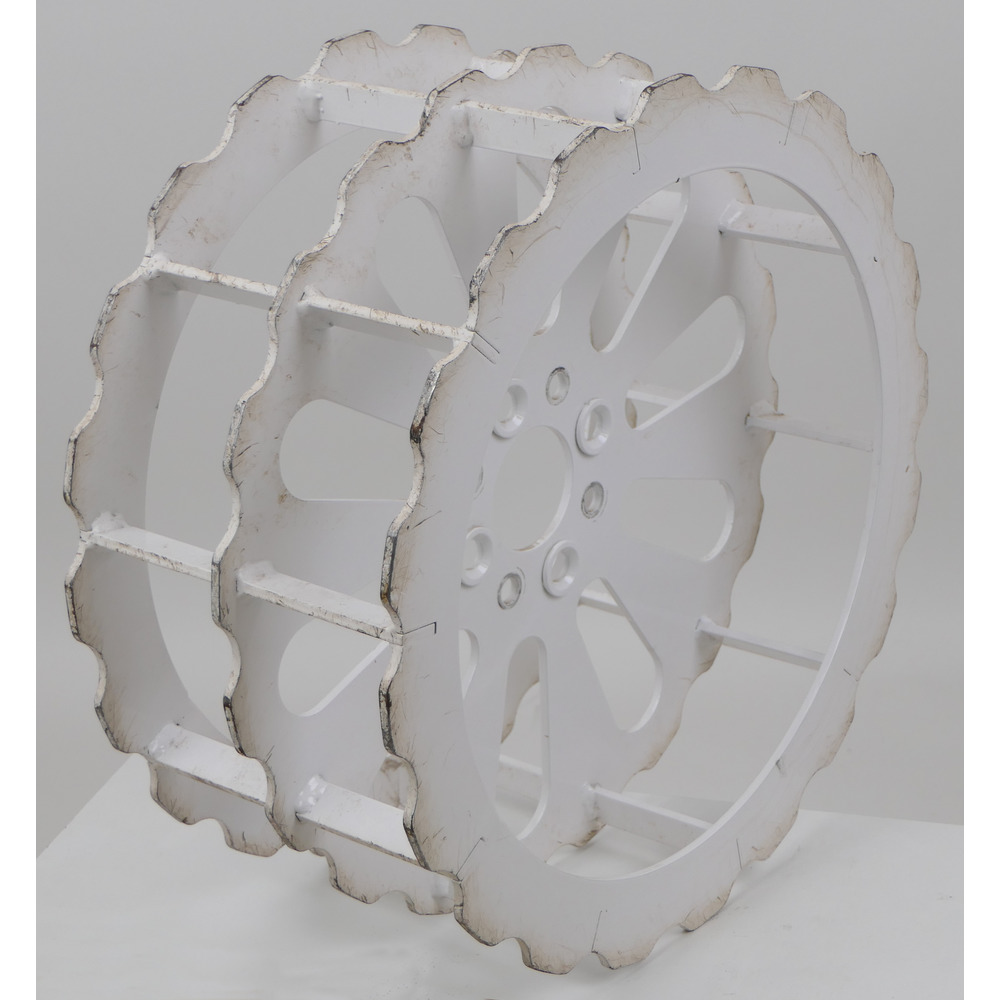

Metal wheel 2.0 Basic suitable for many motor mowers up to a weight of 150kg. The metal wheel has a diameter of 420mm (corresponds to rubber tires 4.00 x 8), a width of 190mm and the centering hole has a diameter of 60.5mm. The fastening hub is made with 2 hole circles 4x100mm. A hole circle with the hole diameter for M12 collar screws and a hole circle for fastening with cone screws with a hole diameter of 15mm. The cone rings are welded into the hub.
The delivery consists of a pair of metal wheels!

The powder-coated metal wheel has a hardened tread on the outer contour and is therefore very resistant to abrasion. Thanks to the nested and welded construction, the wheel is very stable.

How it works!
Due to the offset outer contour or the overlap of the wheel lugs, a closed radius is created. This creates a closed radius You get perfect concentricity on hard surfaces such as a road without vibrations or shock loads on the driver and drive axles.

The design of the wheels ensures a gentle crop flow of the forage from the knife bar right behind the wheels. Due to the geometry of the wheels, there is no wrapping the axles with food. The metal wheels 2.0 are designed in such a way that they clean themselves while driving. When mowing on soft ground, the wheel cleats engage in the ground. By immersing the driving lugs into the ground, the inner radius and the connecting struts are now the new running surface of the wheels. The controlled immersion of the driving lugs creates a uniform linear drive in which there is hardly any pulling to one side - regardless of whether it is on a slope or with uneven meadow vegetation.

Another positive effect is the ground footprint that the driving lugs leave by immersing it in the ground. This footprint promotes water absorption on steep slopes. The metal wheel 2.0 Basic is suitable for motor mowers weighing up to 150kg. For heavier mowers, a wider version is recommended. In this case, please contact us or fill out the inquiry form available for download with the required technical data and send it to us. You will then receive a tailor-made offer for the right pair of metal wheels for your motor mower.

Scope of delivery: 2 pieces of metal wheels
