Sola Multifunction angle RS 18
Sola Multifunction angle RS 18
Produkt-Highlights
- Leichter, robuster Multifunktionswinkel mit mm/cm Skala
- Multifunktional: Lineal, Anschlagwinkel, Gehrungswinkel, Winkelmesser, Anreißhilfe, Sägeführung und Dachsparrenmesser
- Anschlag für exakte 90° und 45° Markierung
- Sehr gute Ablesbarkeit der Messergebnisse durch erhöhten Kontrast
Beschreibung
Product information "Multifunction angle RS 18"

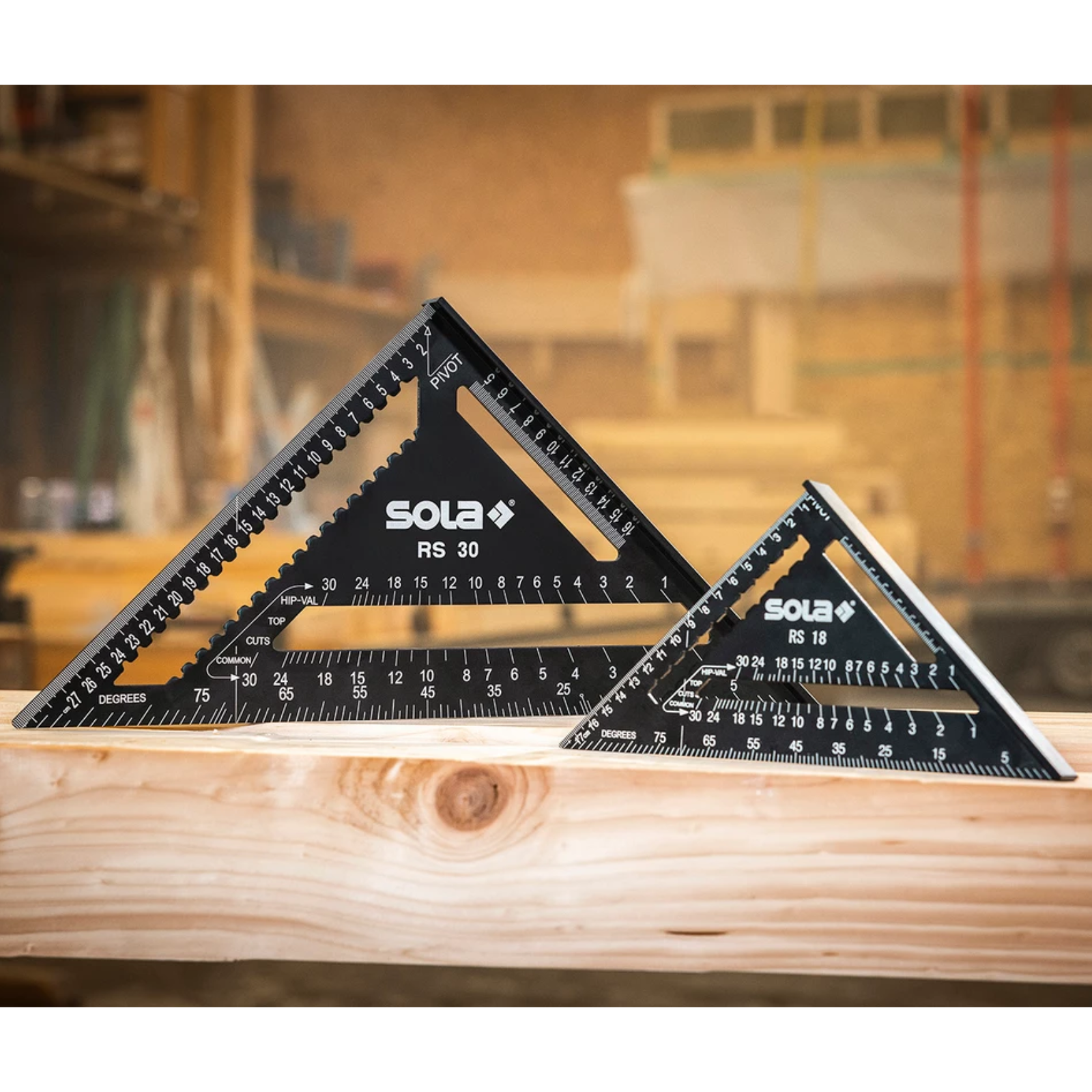

The try square is also called a rafter square, rafter square or speed square and has the shape of an isosceles right-angled triangle with a stop on a side. ~

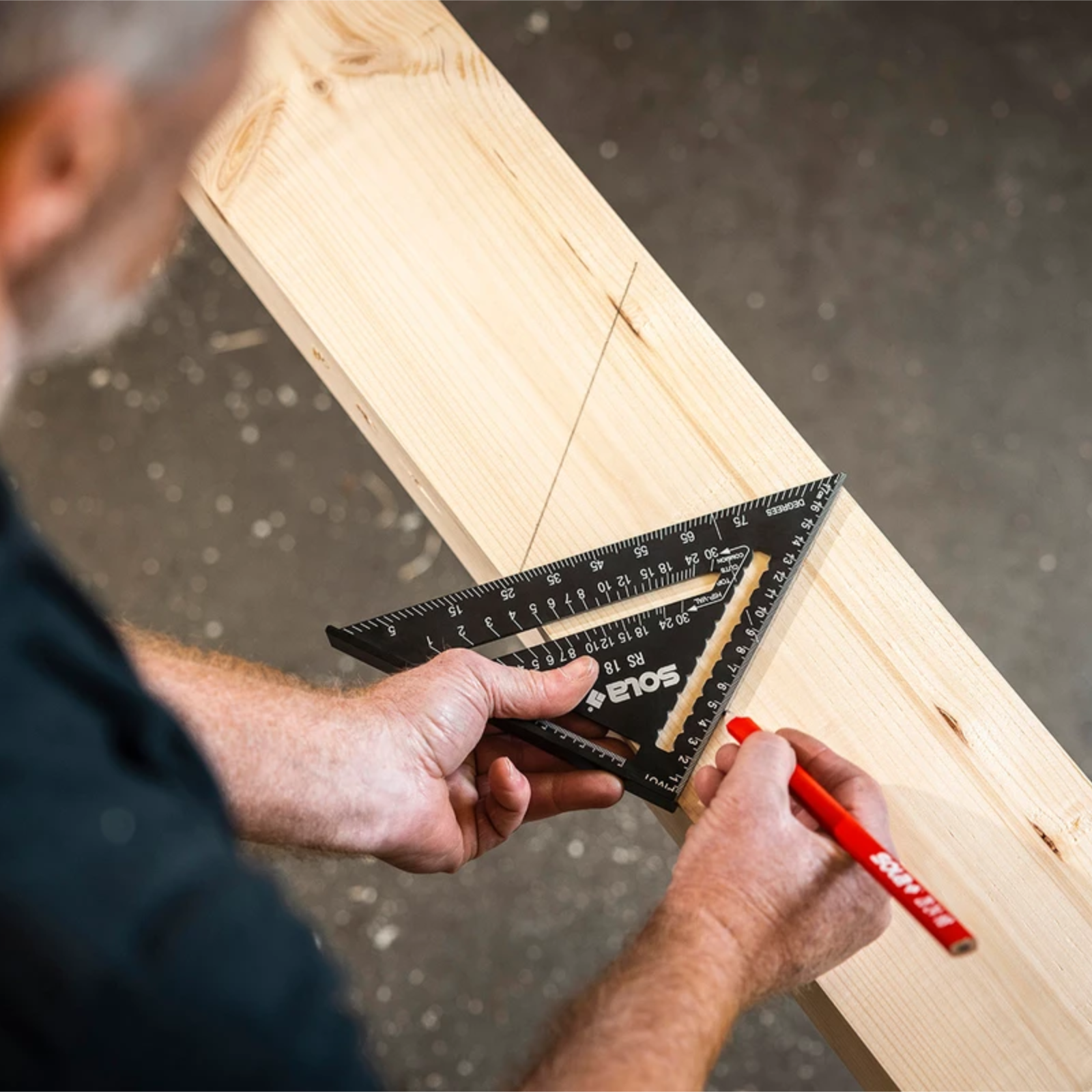

The variety of scales and recesses make the try square a multifunctional tool, which is ideal for marking lines and angles as well as as a scribing tool and saw guide. The try square from SOLA combines the functions of a ruler, try square, miter square, protractor, marking aid, saw guide and rafter knife.

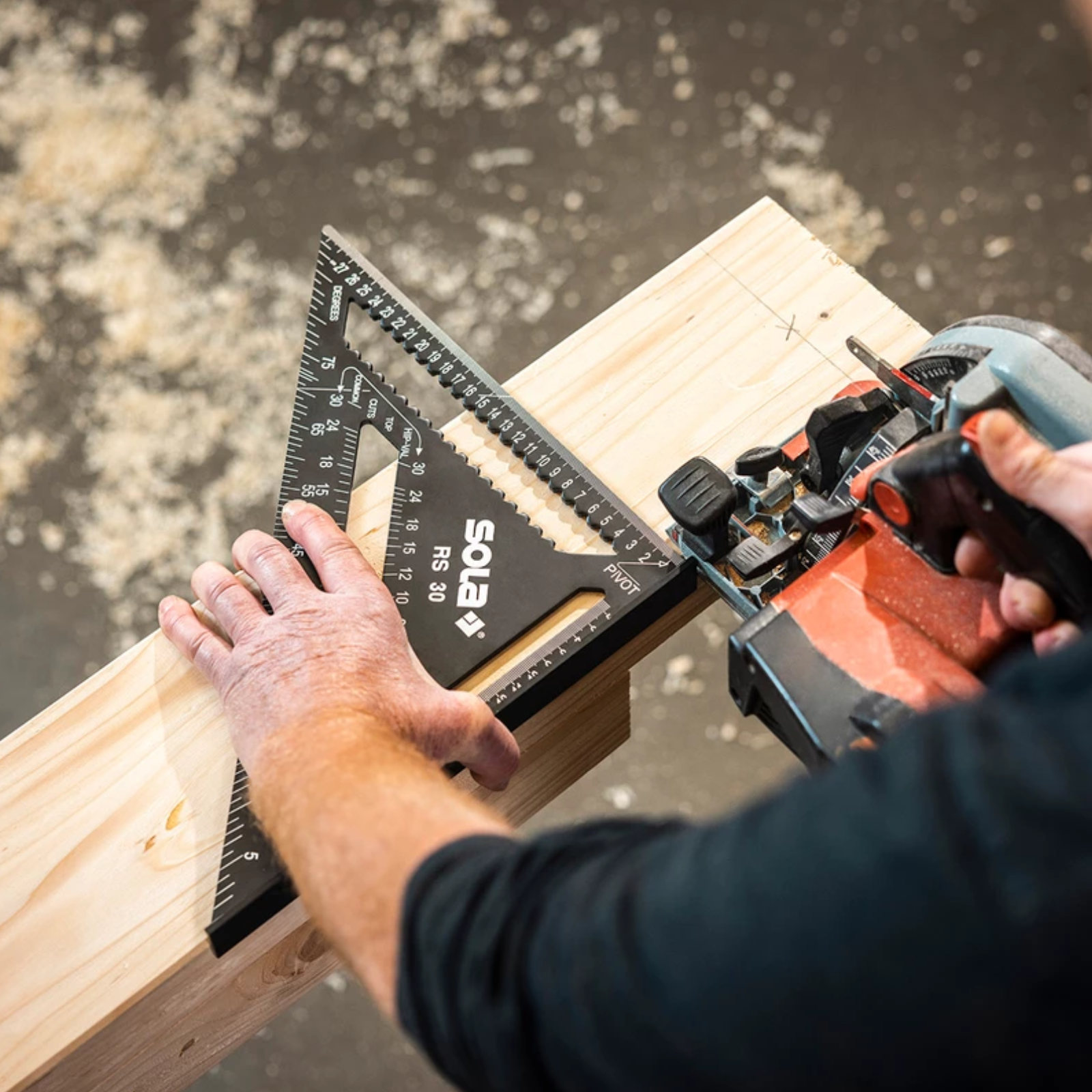

The rafter square in the shape of a right-angled triangle has a robust stop on a side for exact 90 and 45 markings. In addition, the stop in conjunction with the robust edge also serves as a sawing aid or saw guide. Parallel to the stop there is a recess with a metric scale in mm and cm (offset scale), which is ideal for marking vertical lines. ~
The measuring leg of the other catheter also has a metric scale, the quick one Measurements allowed. Below this scale there is a recess with notches with which horizontal or parallel lines can be marked. The hypotenuse has a degree scale for angle measurements between 0 and 90. The desired angle degree is determined starting from the opposite pivot point (designation on the rafter angle: PIVOT). ~ ~
Parallel to the degree scale there is another recess with two scales for shifter cuts. The lower scale is for ordinary rafters or normal rafters (designation on the rafter angle: COMMON), the upper scale for hip rafters and valley rafters (designation on the rafter angle: HIP-VAL). A 90 marking aid for purlin cuts runs at right angles to the degree scale. ~
Technical data:
Item name: ~ Rafter angle
Material: ~ Aluminum
Surface: ~ coated
Color: ~ black
Special feature: ~ Stop ~
Roof rafter gauge
Scaling: ~ mm/cm, ~
1-piece, lasered
Scale grid: ~ 1 mm
Angle dimension: ~ 45, 90, variable 0 - 90Scribing holes: ~ 0.5cm
The variety of scales and recesses make the try square a multifunctional tool, which is ideal for marking lines and angles as well as as a scribing tool and saw guide. The try square from SOLA combines the functions of a ruler, try square, miter square, protractor, marking aid, saw guide and rafter knife.
The rafter square in the shape of a right-angled triangle has a robust stop on a side for exact 90 and 45 markings. In addition, the stop in conjunction with the robust edge also serves as a sawing aid or saw guide. Parallel to the stop there is a recess with a metric scale in mm and cm (offset scale), which is ideal for marking vertical lines. ~
The measuring leg of the other catheter also has a metric scale, the quick one Measurements allowed. Below this scale there is a recess with notches with which horizontal or parallel lines can be marked. The hypotenuse has a degree scale for angle measurements between 0 and 90. The desired angle degree is determined starting from the opposite pivot point (designation on the rafter angle: PIVOT). ~ ~
Parallel to the degree scale there is another recess with two scales for shifter cuts. The lower scale is for ordinary rafters or normal rafters (designation on the rafter angle: COMMON), the upper scale for hip rafters and valley rafters (designation on the rafter angle: HIP-VAL). A 90 marking aid for purlin cuts runs at right angles to the degree scale. ~
Technical data:
Item name: ~ Rafter angle
Material: ~ Aluminum
Surface: ~ coated
Color: ~ black
Special feature: ~ Stop ~
Roof rafter gauge
Scaling: ~ mm/cm, ~
1-piece, lasered
Scale grid: ~ 1 mm
Angle dimension: ~ 45, 90, variable 0 - 90Scribing holes: ~ 0.5cm
| Length (mm): | 305 x 305 |
|---|
Hersteller
Sola Messwerkzeuge GmbH
Unteres Tobel 25
6840
Götzis
AT
[email protected]
GTIN/EAN:
9002719043577
