Set for conversion of a mechanically operated forestry winch on a hydraulic operation with Radio control. ~
You only need a rasterized one , double-acting control valve, or a single-acting valve with free return and a 12 volt supply. ~

The hydraulic cylinder operates the operating lever via a wire cable. This means that the standard cable pull operation still works. ~
The cylinder pulls the lever via radio control - the cable winch pulls. As soon as you no longer operate the transmitter, a ~
spring pushes the cylinder back - the cable winch stops.  ~
As soon as the radio transmitter is no longer operated - the winch stops - safety circuit!

ATTENTION: Please note the increased risk of tipping over with radio control - always keep eye contact with the wood and vehicle!

Technical data: ~
Maximum flow 20 l/min - TIP: most older tractors do not have more l/min at idle speed! ~
Adjustable pressure limiter. ~
Radio range: max. 150 meters outdoors without obstacles !

The radio control set for mechanically powered winches is a great way to increase safety and flexibility when using winches. ~

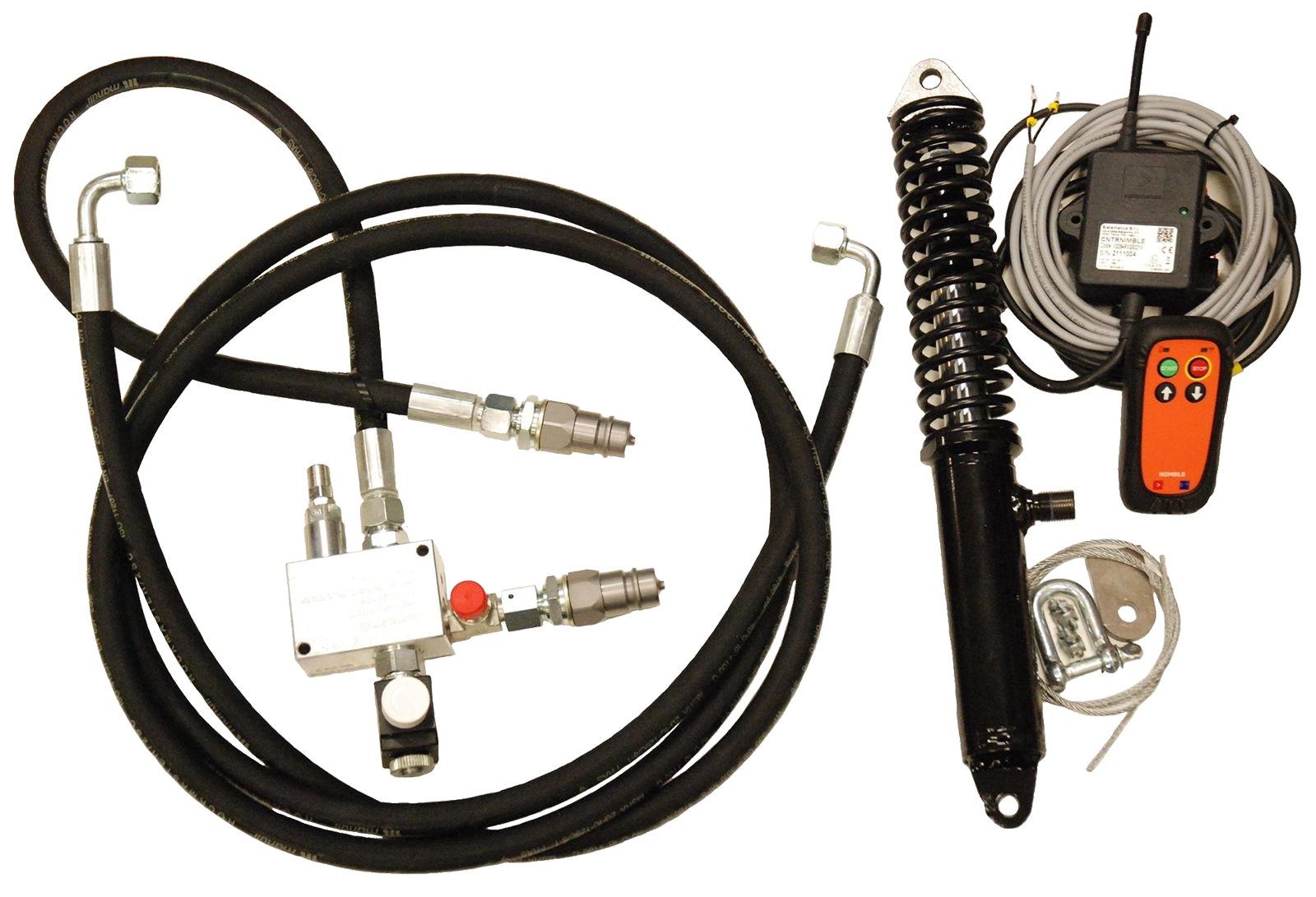

The Set contains a 12 V valve, a hose, a cylinder and a radio with wiring. ~

The valve and the cylinder are mounted on the winch , and the radio is placed in a convenient location.
The radio can then be used to operate the winch without you having to be near the winch. ~
This can occur in dangerous situations or difficult environments. The radio control set is also very easy to install and operate. ~
It is a great way to increase safety and flexibility when using winches. ~

Here are some of the Advantages of the radio control set for mechanically driven winches: ~

• Increased safety: You don't have to be near the winch to operate it. This can be very helpful in dangerous or difficult environments. ~
• Increased flexibility: You can operate the winch from anywhere, which can help you use the winch more efficiently.
• Easy installation and operation: The set is very easy to install and operate.  ~
• Suitable for maximum flow rate of 20 l/min. ~

If you are looking for a safe and flexible way to operate your winch, The radio control set for mechanically driven winches is the perfect solution for you.
