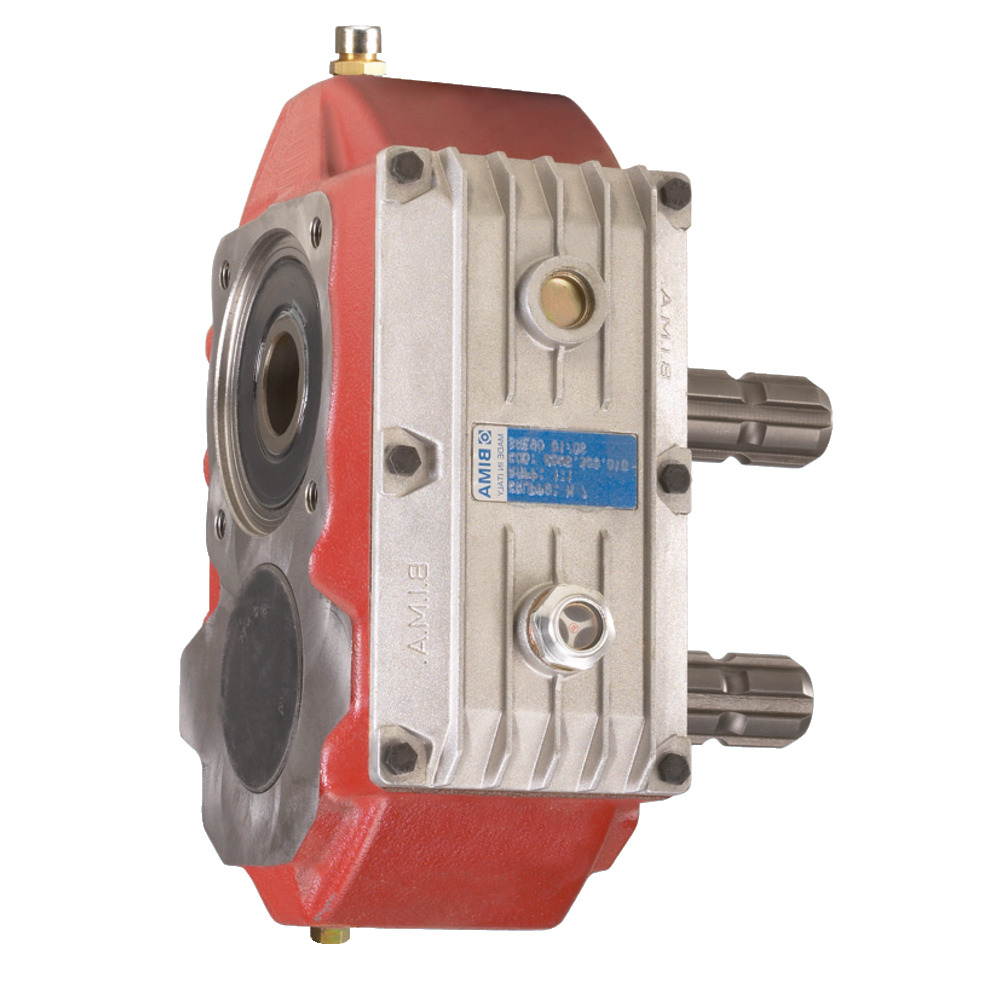

Bondioli & Pavesi Reduction gear front PTO shaft M7 1.9:1
Bondioli & Pavesi Reduction gear front PTO shaft M7 1.9:1
Beschreibung
Product information "Reduction gear front PTO shaft M7 1.9:1"
Particularly suitable for attachment to the front PTO shaft to change the direction of rotation and reduce the speed from 1000 rpm to 526 rpm. The transmission is mounted on the tractor side.
Input Y:
PTO shaft stub or internal toothing
540/1000 rpm, 26.4/51.5 kW, 477/928 Nm
Connection 1 3/8x6, internal or external toothing
Possibility with through drive 1:1 (direction of rotation constant).
Output X:
284/ 526 rpm, 482/895 Nm
Connection 1 3/8x6 external toothing
Reversal of direction of rotation
In general, torque peaks up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
Input Y:
PTO shaft stub or internal toothing
540/1000 rpm, 26.4/51.5 kW, 477/928 Nm
Connection 1 3/8x6, internal or external toothing
Possibility with through drive 1:1 (direction of rotation constant).
Output X:
284/ 526 rpm, 482/895 Nm
Connection 1 3/8x6 external toothing
Reversal of direction of rotation
In general, torque peaks up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.
| Suchnummer: | 59691 |
|---|
Hersteller
Bondioli + Pavesi
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
MPN:
Downloads
There are no downloads available for this article
