Reversing video system color TFT 7
Reversing video system color TFT 7
Produkt-Highlights
- Spiegelfunktion
- Abstandslinien zuschaltbar
- 12x Infrarot LEDs, Top-Nachtsichtfähigkeit bis 10 m
- Schutzklasse IP68
Beschreibung
Product information "Reversing video system color TFT 7"

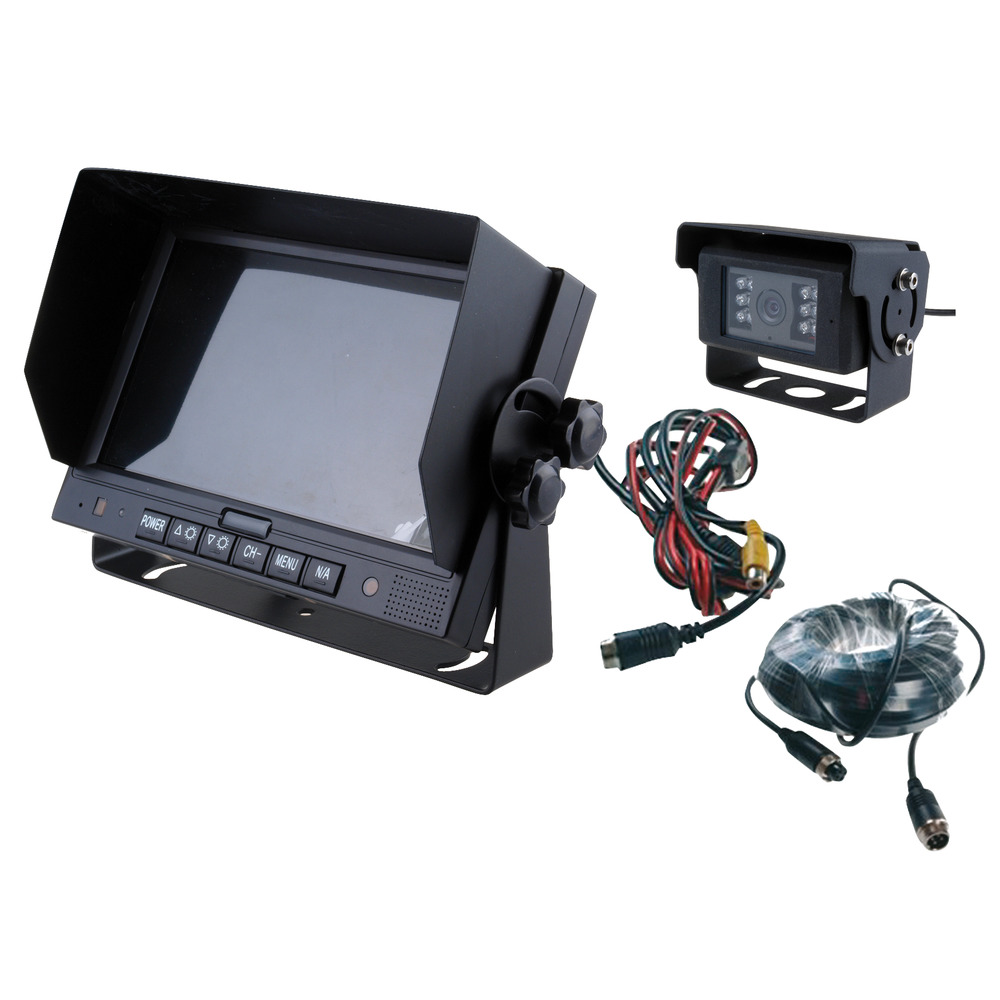

Complete set with 1 monitor, 1 camera, 2 brackets (self-adhesive stand or bracket), connection cable and 18 m connecting cable.
Flat color TFT monitor with internal speaker, 2 camera connections, display size: 7 inch screen diagonal (approx. 18 cm), brightness of 400 cd/m, contrast of 500:1, can be used from 12 to 32 volts, power consumption 6 watts, mirror function in the horizontal and vertical, automatic on and off when connected to the Reverse gear, distance lines can be switched on, for even easier reversing, menu in 8 languages, monitor size (WxHxD): 182x122x26 mm, size including bracket: 198x138x31 mm, connection cable 1.7m.
Infrared reversing camera 1/3 Sharp CCD color sensor including microphone, viewing angle 120, 300,000 pixels, 420 TV lines, light sensitivity 0 Lux, automatic backlight adjustment, 12x infrared LEDs for top night vision up to 10 m, current consumption 250 mA, can be used from approx. - 20C to + 70C, protection class IP68, aluminum pressure housing, video output 1.0Vp-p, 75 Ohm, weight 600 g, dimensions 110x85x70 mm.
Flat color TFT monitor with internal speaker, 2 camera connections, display size: 7 inch screen diagonal (approx. 18 cm), brightness of 400 cd/m, contrast of 500:1, can be used from 12 to 32 volts, power consumption 6 watts, mirror function in the horizontal and vertical, automatic on and off when connected to the Reverse gear, distance lines can be switched on, for even easier reversing, menu in 8 languages, monitor size (WxHxD): 182x122x26 mm, size including bracket: 198x138x31 mm, connection cable 1.7m.
Infrared reversing camera 1/3 Sharp CCD color sensor including microphone, viewing angle 120, 300,000 pixels, 420 TV lines, light sensitivity 0 Lux, automatic backlight adjustment, 12x infrared LEDs for top night vision up to 10 m, current consumption 250 mA, can be used from approx. - 20C to + 70C, protection class IP68, aluminum pressure housing, video output 1.0Vp-p, 75 Ohm, weight 600 g, dimensions 110x85x70 mm.
| Suchnummer: | 73185 |
|---|
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844
Regau
AT
[email protected]
MPN:
bed_rueckfahrvideostystem-tft7_-73185.pdf
