Formiko Rotator FHR 4.500 flange

Product number: FA5187

€699.00 *

Content: 1 Stück

Prices incl. VAT plus shipping costs

▶ Leave a review!

wenige lagernd (2-4 Werktage)

Questions about the article

article in FAIE catalog

You get 3495 points for this order

Beschreibung

Product information "Rotator FHR 4.500 flange"

Professional rotator from Latvian production!

Endless rotation range, for use on forwarding wagons, forwarding tongs, front loaders or similar. With protective bracket for the supply lines, without hoses.

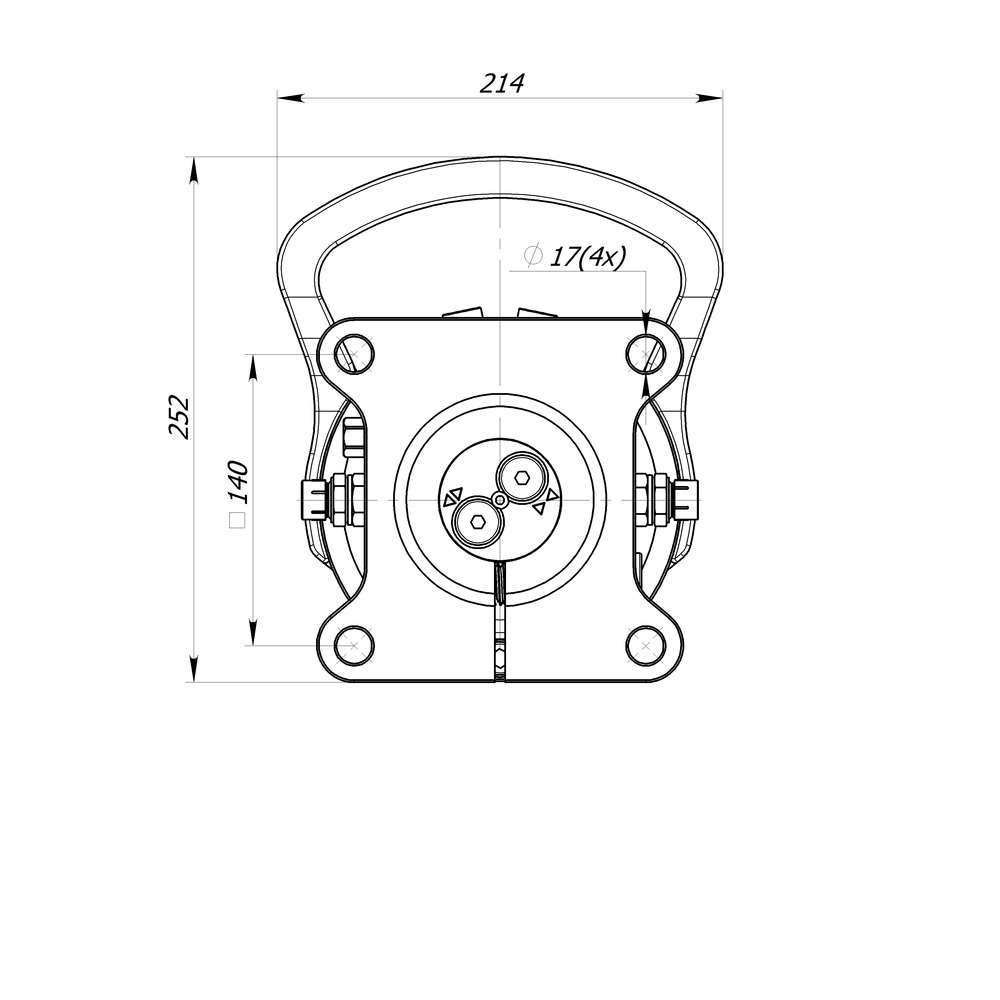

with 4-hole flange with 140 x 140 mm hole size, 17 mm bore, ~
max. Axial load 4.5 tons (static), ~
1050 Nm torque at max. 250 bar, ~
max. 300 bar for closing the gripper, max. 200 bar for opening the gripper, ~
required oil flow 20 liters/min., ~
connection 3/8", weight 25 kg.

ATTENTION: Regularly check the Allen screw on the flange for tightness - tighten if necessary!

Suchnummer:	5187

Hersteller

Formiko Hydraulics
Str. Vagonu 28
1009 Riga
LV
[email protected]
MPN:

Downloads

dat_5187-rotator-fhr4500.pdf
