Browin Smoker dragON electric E101 70L with smoke generator
NEU
Browin Smoker dragON electric E101 70L with smoke generator
Product number:
FA129465
€599.00 *
Freight flat rate:
€65.00
Content:
1
Stück
wenige lagernd (2-4 Werktage)
Produkt-Highlights
- Regulierbare Luftzufuhr
- Sicherer Griff (zum Öffnen der Tür), der nicht heiß wird
- Stabile Seitengriffe
- Türkonstruktion, die das Auslaufen von Flüssigkeit verhindert
Beschreibung
Product information " Smoker dragON electric E101 70L with smoke generator "
The dragON E101 electric smoker with smoke generator is a high-quality, practical appliance with an attractive design that is ideal for warm and hot smoking, cold smoking (without using the heating element) and toasting.

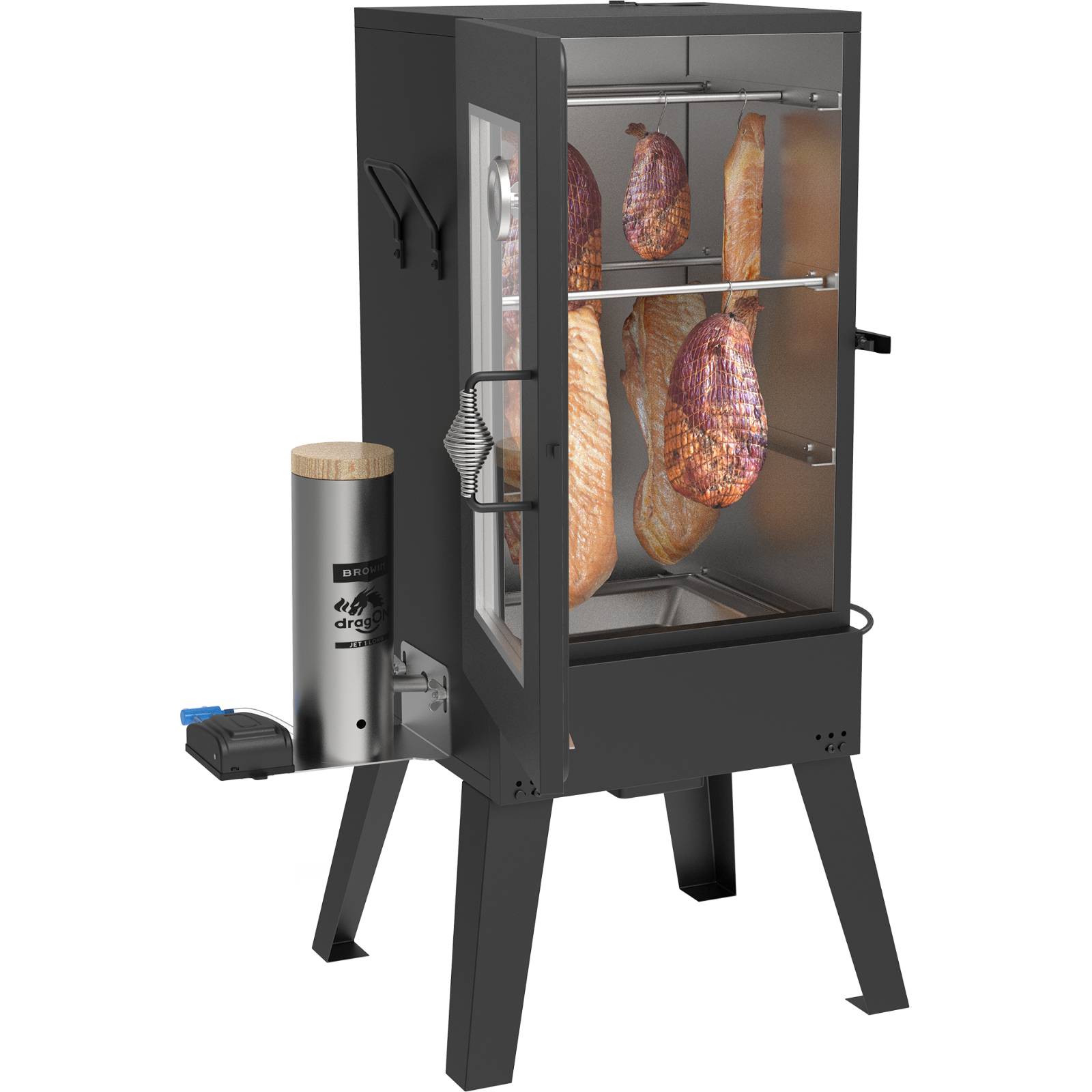

With this versatile 70-liter smoking chamber, you can prepare excellent meat products, fish and homemade smoked cheese - it can hold up to 9 kg. Your specialties will have a wonderful aroma and a unique taste!
Hot and cold smoking:
Professional garden smoker oven with a capacity of 70 L, which can hold 6-9 kg of contents.
Ideal for all smoking methods: Warm and hot smoking, cold smoking (without switching on the heating element, only with smoke generator), as well as for toasting and drying....
Well insulated walls:
This solution ensures a stable temperature in the chamber (which you will especially appreciate in winter) and reduces power consumption - so you smoke very efficiently and save energy at the same time!
Innovative electric smoke generator dragON Jet 1 LONG:
Patented by the Browin company, together with the pump and the smoking chips, ensures optimum distribution of the smoke in the smoking chamber.
Internal drip tray:

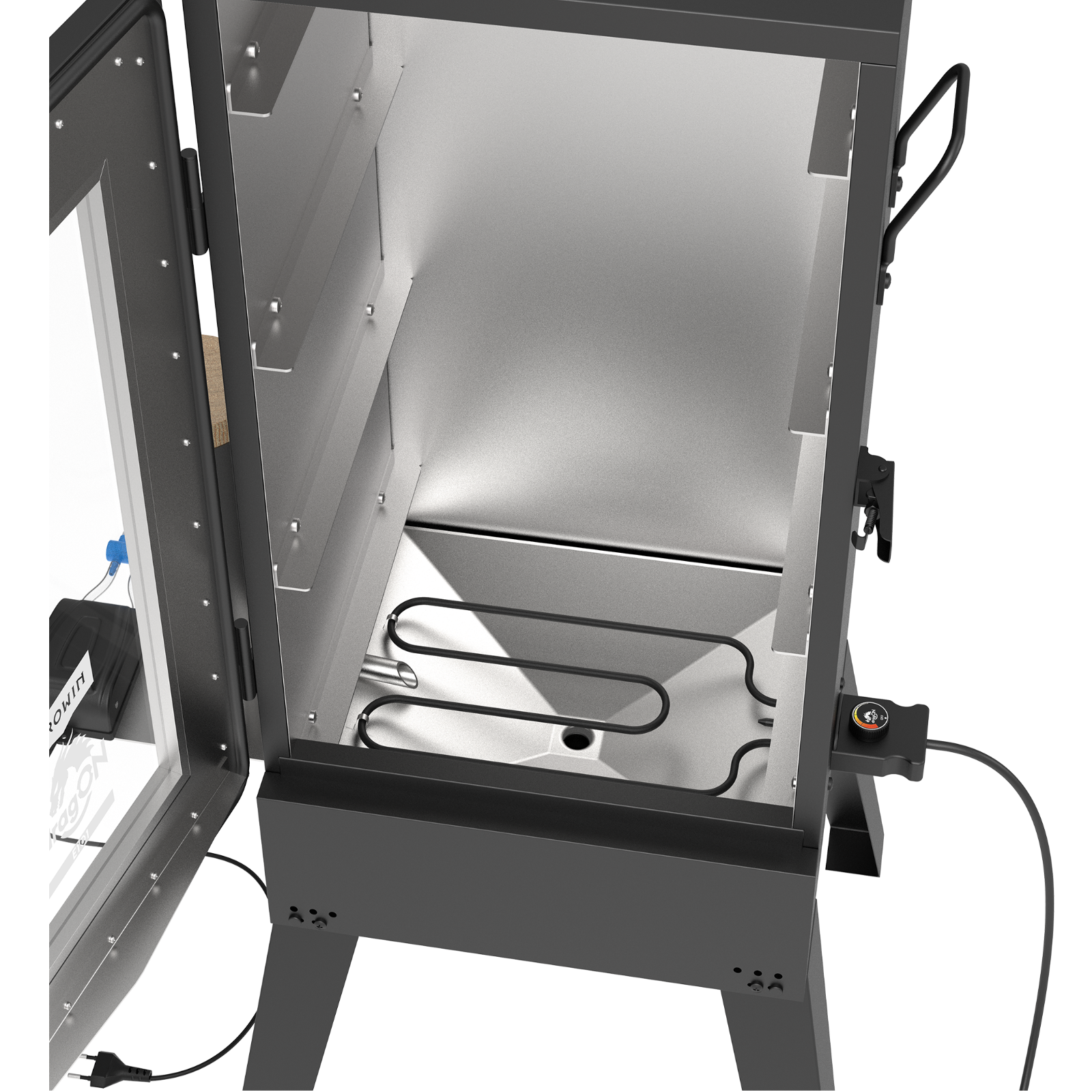

Makes it easier to clean the smoking chamber and acts as a deflector, distributing the smoke evenly throughout the smoking chamber.
Door with drip edge:
This practical design solution prevents condensation from dripping onto the seal.
Additional outer drip tray:
Allows excess condensation to be conveniently drained from the smoking chamber.
Excellent control of the smoking process and easy temperature regulation:

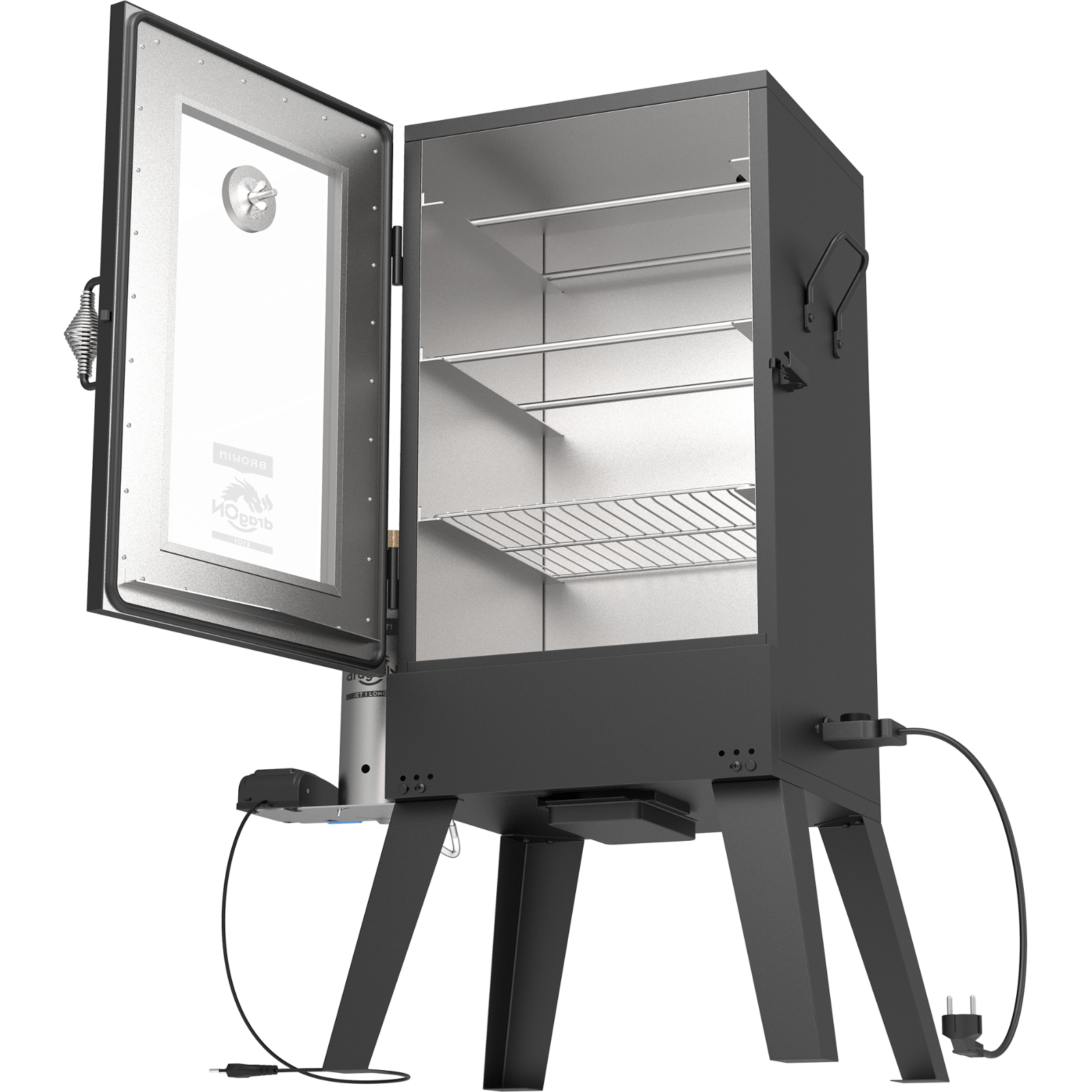

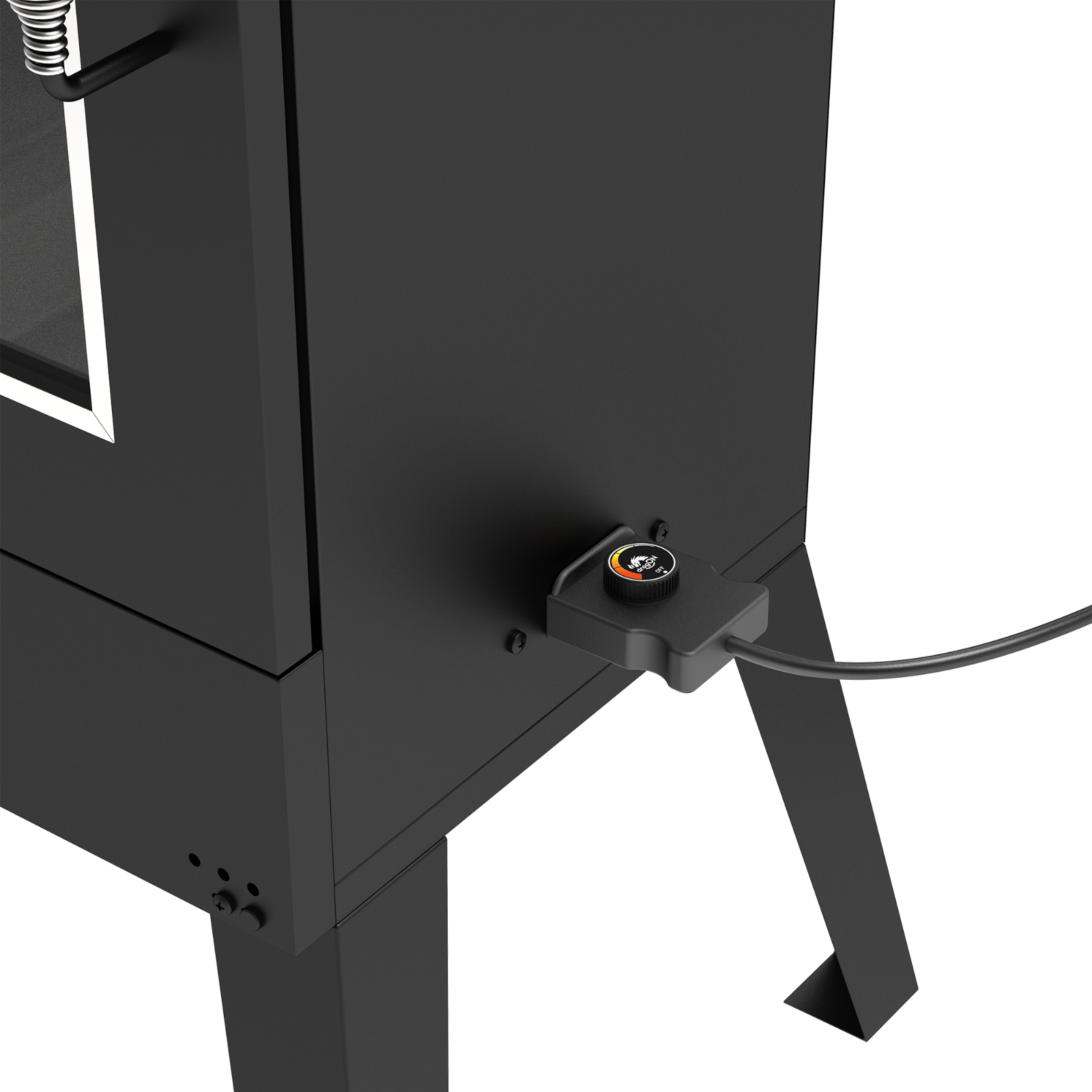

The glass door of the smoker provides a convenient view inside, while the thermostat and analog thermometer offer easy regulation and monitoring of the temperature.
All in one high-quality set

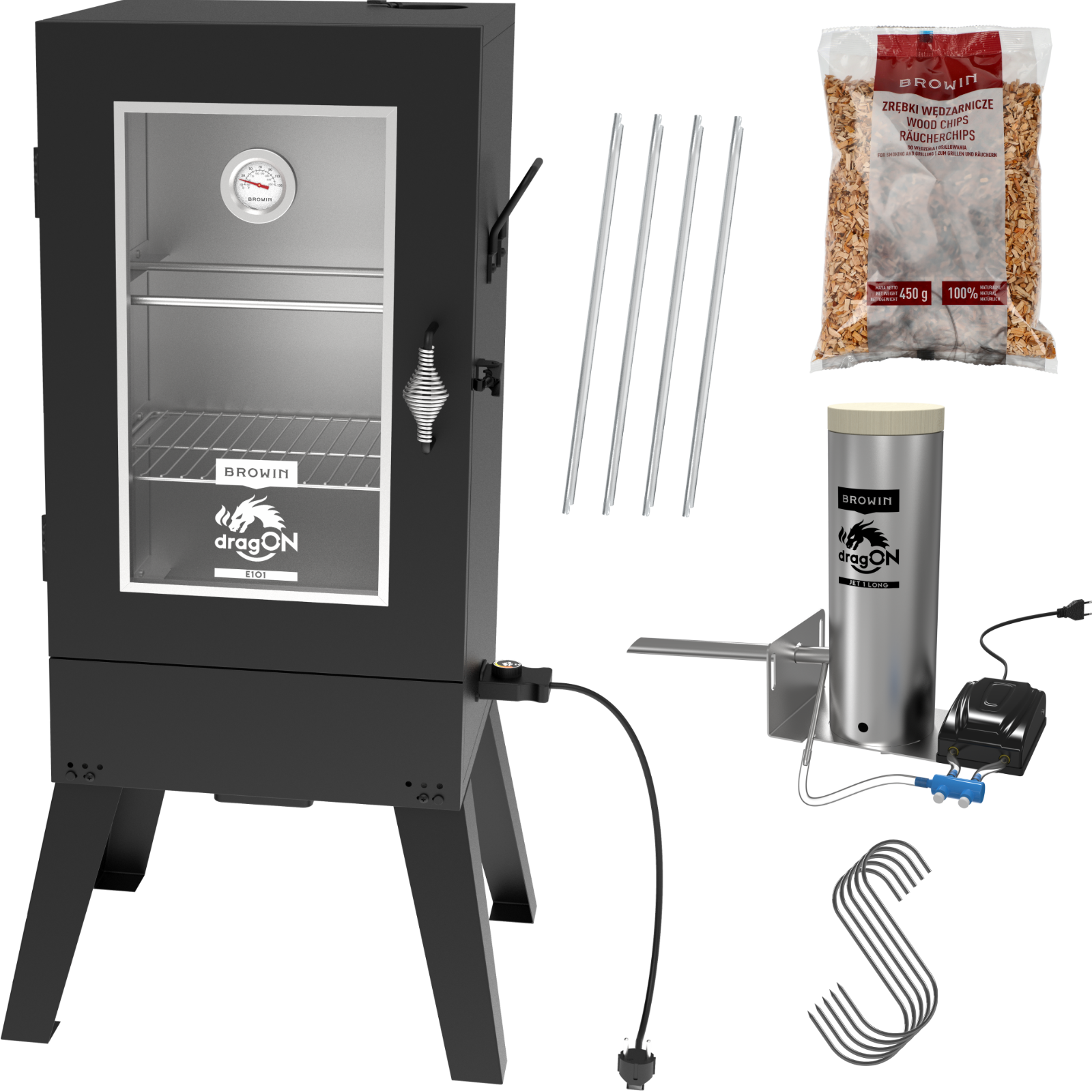

A spacious stainless steel version of the smoking chamber, sturdy metal legs for easy access to the interior of the smoking chamber, slide, grate, rods and hooks, smoking chips, a precise analog thermometer and two drip trays. In addition, there is the high-performance smoke generator with the Jet 1 LONG electric pump.

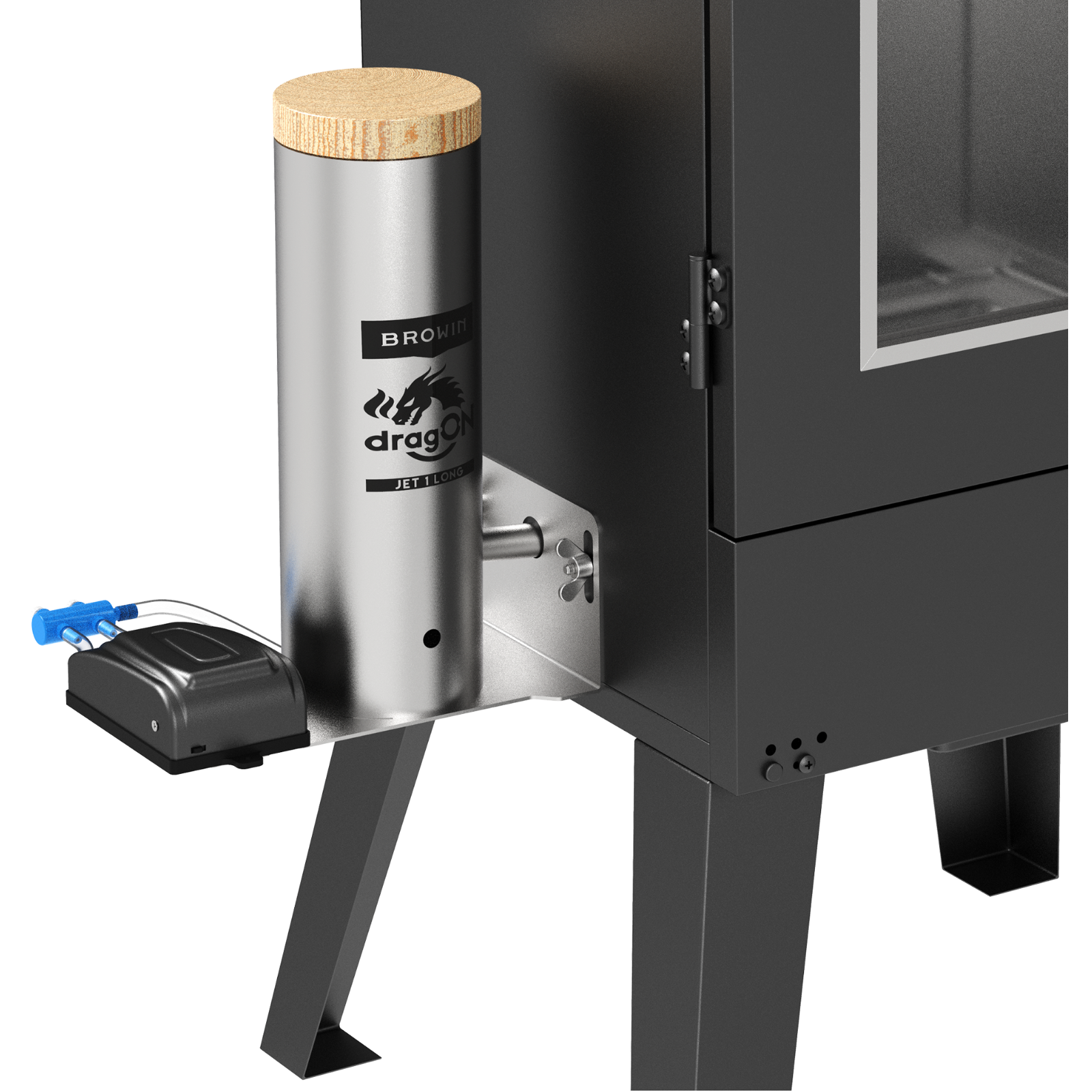

The innovative, patented design of this smoke generator ensures optimum distribution of the smoke produced during the burning of the smoking chips. The pump with adjustable air flow speed is positioned on the base so that its vibrations are transmitted to the cylinder. This prevents the chips from getting stuck during the burning process. A special adapter makes it quick and easy to connect the smoke generator to the smoking chamber. The extended outlet pipe of the generator is located directly above the drip opening in the base of the smoking chamber. This means that the smoking process is clean and subsequent cleaning is quicker and easier.
The smoke generator holds around 450 g of chips, which is enough for around 3-4 hours of operation (depending on the air supply setting with the pump regulator) without the need to refill chips.
The Jet 1 generator enables cold smoking without additional components!
Cold smoking is carried out without the heating element switched on, using only the smoke generator. With this method, smoking is possible at an outside temperature of 12 to 25°C, which allows a temperature of 16 to 30°C in the chamber. If these values are maintained, the total smoking time is between 1 and 14 days, depending on the desired result and product type. If you choose the cold smoking option, remember not to use the smoker on a sunny day.

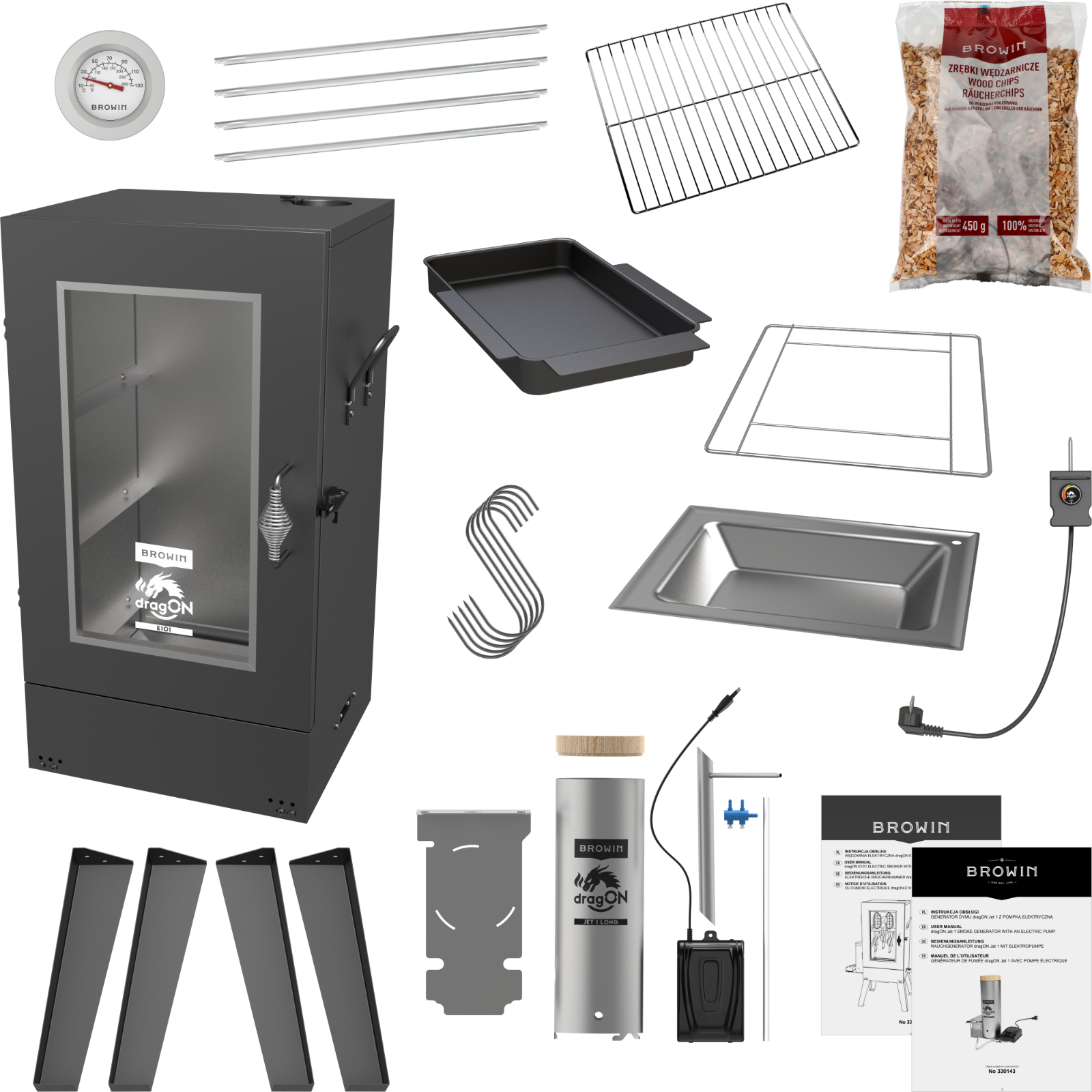

Elements of the set:
Smoking chamber body
Inner drip tray/deflector
Frame for the inner drip tray
Outer drip tray
Grate
Steel support (4 pieces)
S-hooks (5 pieces)
Smoking chips (1 pack)
Smoke generator dragON Jet 1 LONG with pump, hoses and adapter for mounting on the wall of the smoking chamber
Feet (4 pieces)
Power cable with thermostat
Analog thermometer
Side handles, door handle
Slider for the chimney opening
Rails for the drip tray
Set of screws and nuts
Operating instructions
Instructions: for the smoke chamber and the smoke generator with pump
Technical data:
Capacity: 70 L (3 levels) for 6-9 kg contents
Product dimensions (without generator):
Overall height: 103 cm (including 27 cm legs)
Height of the smoke chamber: 76 cm
Width: 41 cm
Depth: 37 cm
Heating temperature range: from +38 to +130 °C
Heating power: 1300 W, 50 Hz, 230 V
Power of the pump for the smoke generator: 5 W
Length of power cable: 180 cm
Weight (without generator): 25 kg
WARNING: Before using the smokehouse and the smoke generator with pump, read the instructions carefully, including the information on assembly, warnings and instructions on preparing and using the appliances. Always follow the specified safety instructions.
The smokehouse is intended for outdoor use only.
Follow the recommendations given in the instructions, both before first use and for each subsequent use. Clean the smokehouse after each use according to the instructions described in the manual.
| Suchnummer: | 129465 |
|---|
Hersteller
BROWIN
Pryncypalna-Straße129/141
93373
ODZ
PL
[email protected]
GTIN/EAN:
5904816022445
Sicherheitsanweisung_129465.pdf
