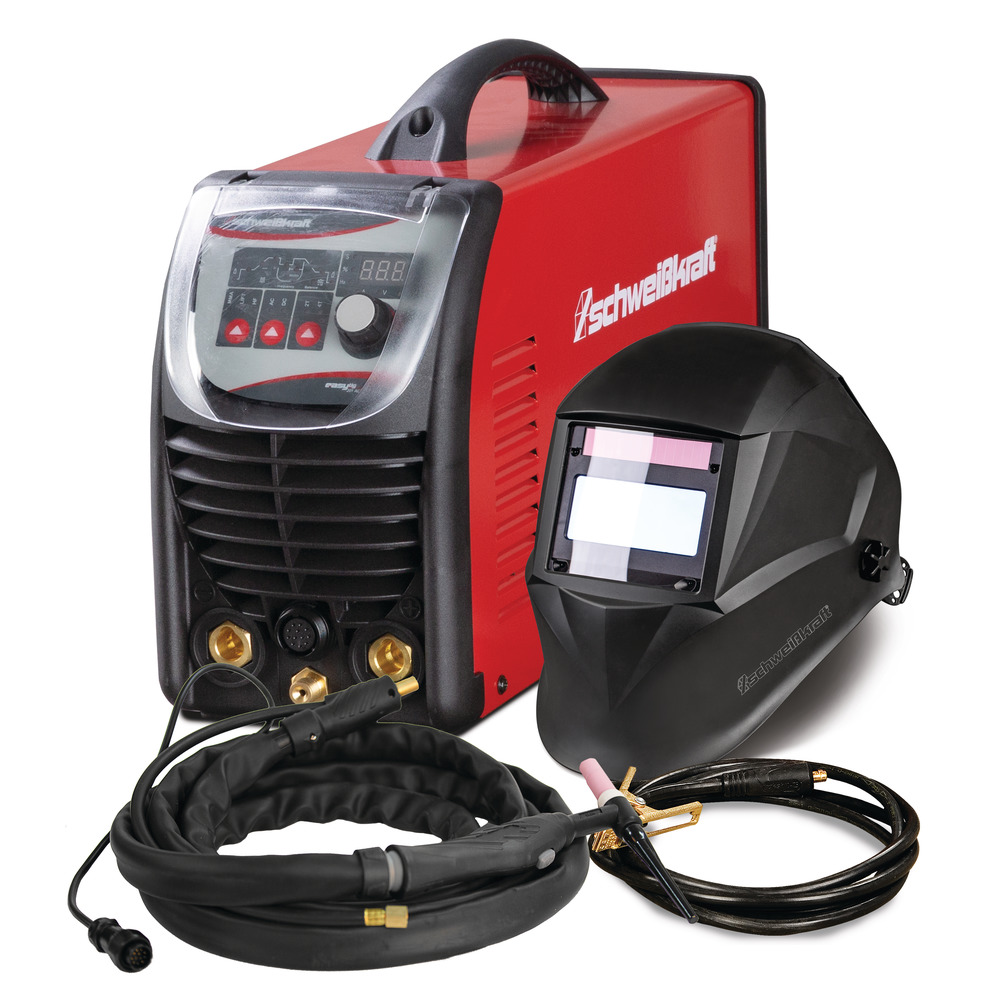

Schweißkraft Welding Power TIG Inverter Easy TIG 201 AC/DC - 10-170A
Schweißkraft Welding Power TIG Inverter Easy TIG 201 AC/DC - 10-170A
Produkt-Highlights
- AC/DC für das Schweißen von Stahl, Edelstahl und Aluminium
Beschreibung
Product information "Welding Power TIG Inverter Easy TIG 201 AC/DC - 10-170A"
For workshop and mobile use ~ - ~The welding power TIG inverter Easy TIG 201 AC/DC is a state-of-the-art welding machine that is ideal for workshops and mobile applications. ~
With its 230V connection, it is particularly practical for assembly work. The digital display allows precise settings of the welding parameters. This device offers a variety of functions such as TIG DC for easy TIG welding, TIG pulses for reduced heat input and HF high-frequency ignition without touching the workpiece. The quiet cooling ensures a long duty cycle and efficient heat dissipation. At around 9 kg, it is light and mobile. The welding power TIG inverter Easy TIG 201 AC/DC is suitable for workshops, metal construction, construction sites and agriculture. It is a powerful, versatile device for precise and efficient welding in various applications. ~
Summary: ~All devices use modern inverter technology.
With its 230V connection, it is particularly practical for assembly work. The digital display allows precise settings of the welding parameters. This device offers a variety of functions such as TIG DC for easy TIG welding, TIG pulses for reduced heat input and HF high-frequency ignition without touching the workpiece. The quiet cooling ensures a long duty cycle and efficient heat dissipation. At around 9 kg, it is light and mobile. The welding power TIG inverter Easy TIG 201 AC/DC is suitable for workshops, metal construction, construction sites and agriculture. It is a powerful, versatile device for precise and efficient welding in various applications. ~
Summary: ~All devices use modern inverter technology.
- Best suited for assembly work thanks to 230V connection.
- TIG DC function enables easy TIG welding

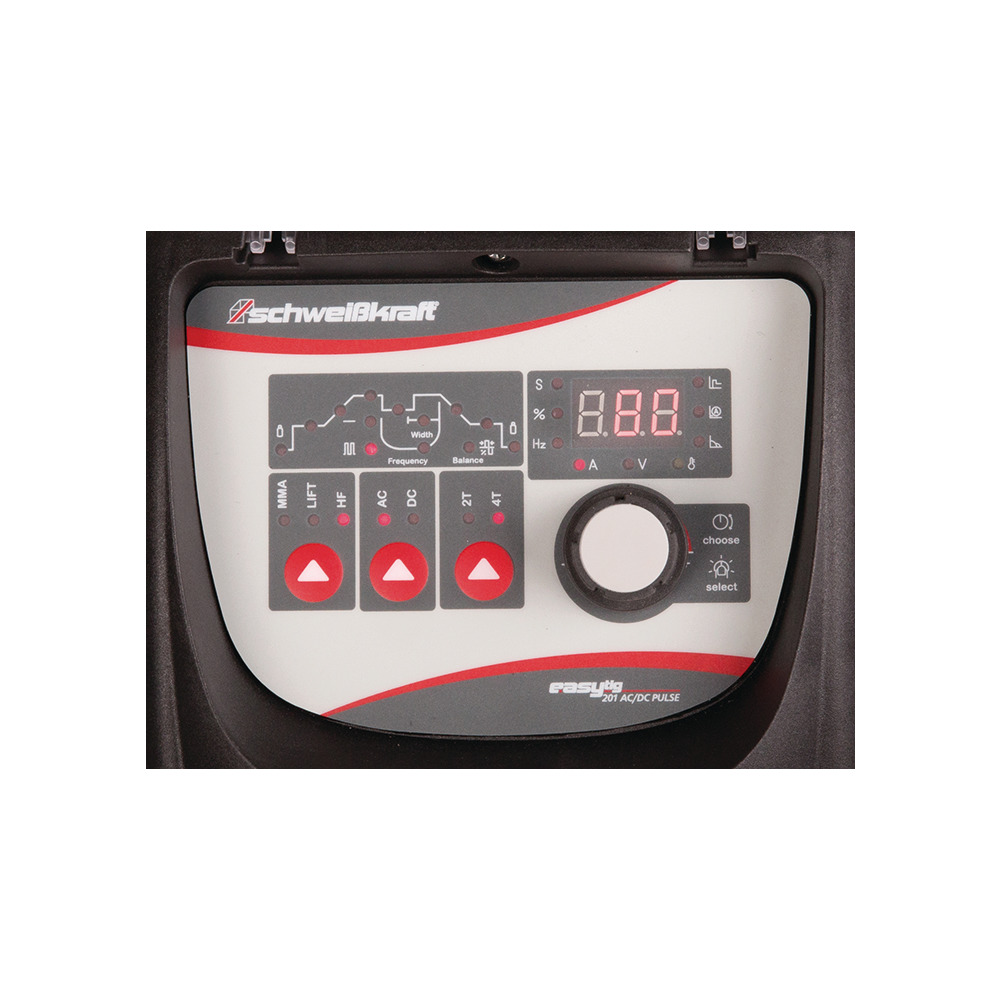

- Precise adjustment of the welding parameters via digital display
- Universally usable for welding all common types of electrodes
- Suitable for use on generators, e.g. in company workshops , schools, metal construction, on construction sites or for farmers
- TIG pulsing enables welding with reduced heat input
- HF high-frequency ignition ignites during TIG welding without touching the workpiece
- Thanks to the quiet running fans, the heat is dissipated well from the devices and thus a long duty cycle is achieved
- Length: approx. 460mm
- Width / depth: approx. 150mm
- Height: approx. 280mm
- Weight : approx. 9kg
- Power type: AC
- Total power: 7.0 / 9.5kVA
- Standard: EN 60974-1:2006-07/EN 60974 -10:2008-10
- Protection rating: IP23
- Open circuit voltage: 52V
- Weldable electrodes: 1.6 - 4.0mm
- Setting range TIG: 10-170A
- Setting range electrodes: 10-170A
- Duty cycle at max. current 40C electrode: 40%
- Current at ED 100% 40C TIG: 120A
- Current at ED 100% 40C electrode: 110A
- Power consumption TIG: 6.4kVA
- Power consumption electrode: 8.9kVA
- Pulse frequency: 0.5 - 200Hz
- Ignition: high frequency
- Burner cooling: air
- Power factor: cosphi 0.6
- Sheet thicknesses: 1.0 - 8.0mm
| Suchnummer: | 105481 |
|---|
Hersteller
Aircraft
Gewerbestrasse Ost 6
4921
Hohenzell
AT
[email protected]
GTIN/EAN:
4036351250166
Downloads
There are no downloads available for this article
Bewertungen
Login
There aren't any asked questions yet.
#FA55305

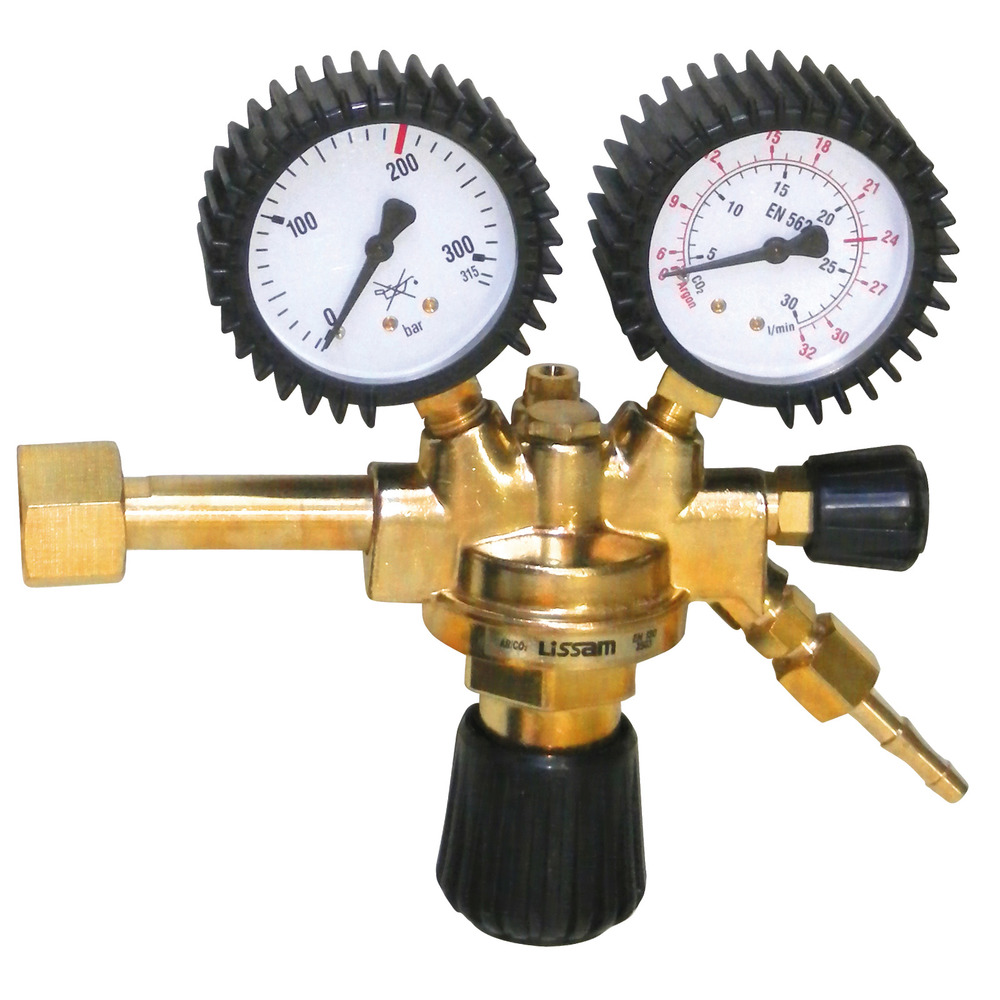

Pressure reducer Ar/Co2 Fronius
