FAIE Wood grabber/forestry grabber/loading tongs including safety valve

Product number: FA73303

€1,499.00 *

Freight flat rate: €39.00

Content: 1 Stück

Prices incl. VAT plus shipping costs

▶ Leave a review!

available within 14 working days

Questions about the article

article in FAIE catalog

You get 7495 points for this order

Beschreibung

Product information "Wood grabber/forestry grabber/loading tongs including safety valve"

Professional wood grabbers / loading tongs in first-class quality!

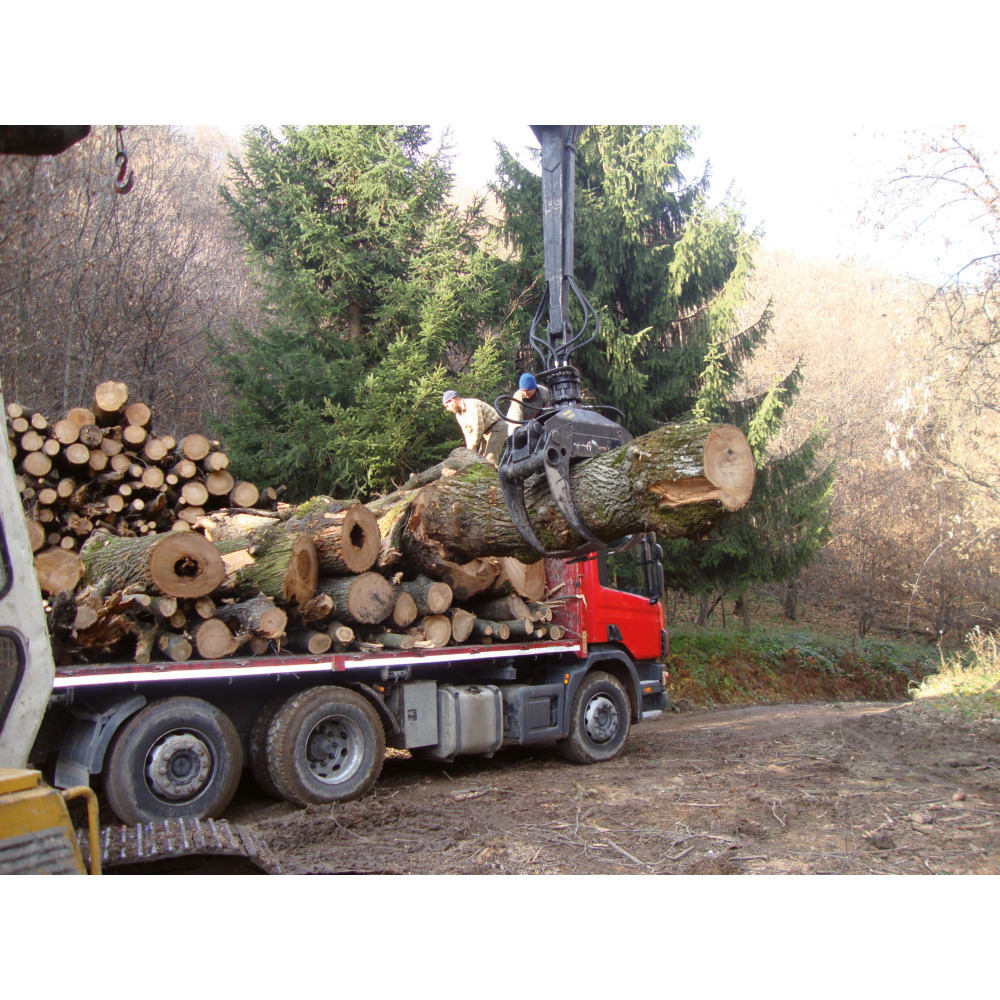

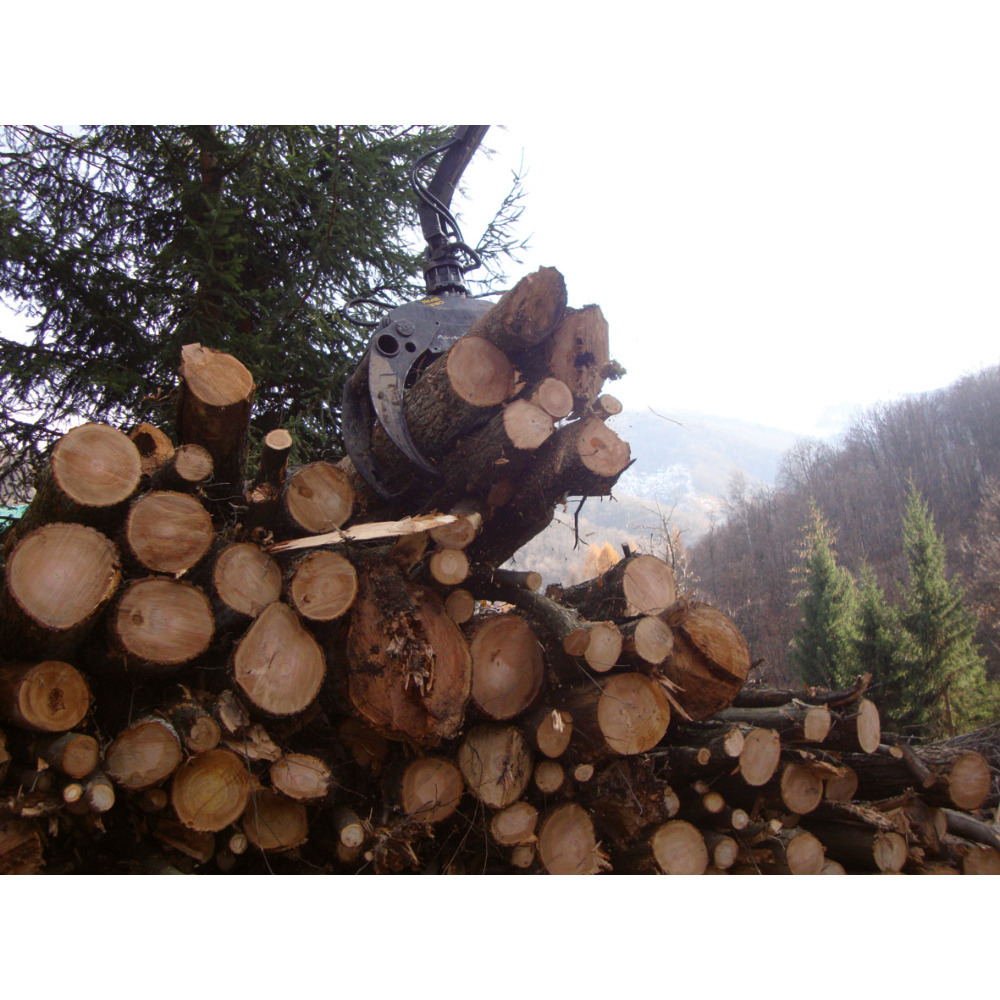

Thanks to the use of particularly high-quality material, Domex 700, and additional reinforcements, these grabbers are suitable for all applications. For example: forestry cranes, forestry tongs, forestry trailers, forestry and telescopic loaders, excavators, and much more. The optimal fork shape enables clean loading with a large loading volume, a particularly small minimum clamping area and compact external dimensions. The GMR series always has a high-strength flange connection (for flange rotators, excavators,...) and can be equipped with an intermediate piece for a bolt connection (for bolt rotators - see accessories). Including mounted locking block on the cylinder: serves as a safety valve in the event of a hose break and relieves the load on the control valve!

Load capacity (kg):	1900
Model:	GMR 1100
Opening width (mm):	1180
Suchnummer:	73303
Weight (kg):	85

Hersteller

C.E.A. di Cornaglia SRL
Via Marene, 17
12045 FOSSANO (CN) - ITALY
IT
[email protected]
MPN:

Downloads

There are no downloads available for this article

Bewertungen

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Please enter a valid email address.

Your question *

Please enter a valid question.

I agree that my data will be processed to answer the question. I have taken note of the Privacy Policy and agree to the information described therein.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Fields marked with * are mandatory.

There aren't any asked questions yet.

#FA73318

Flange plate with mount for bolt rotator

Sale and shipment by: FAIE Handels GmbH

Flange dimensions: 4 holes with 140 x 140 mm. 49.5 mm sleeve for 3.0 ton rotator, suitable for gripper GMR 1050, 1100, 1300

€155.00*

#FA73320

Flange plate with mount for bolt rotator

Sale and shipment by: FAIE Handels GmbH

Flange dimensions: 4 holes with 140 x 140 mm.59.0 mm sleeve for 4.5 ton rotator, suitable for gripper GMR 1300, 1500, 1750

€185.00*

#FA5186

Rotator FHR 4,500 shaft

Sale and shipment by: FAIE Handels GmbH

Professional rotator from Latvian production!Endless rotation range, for use on forestry trailers, forwarding tongs, front loaders or similar. With protective bracket for the supply lines, without hoses.with 59.0mm shaft and 30mm bore, max. axial load 4.5 tons (static), 1050 Nm at max. 250 bar, max. 300 bar for gripper closing, max . 200 bar for gripper opening, required oil flow 20 liters/min., connection 3/8", weight 25 kg.

€599.00*

#FA5187

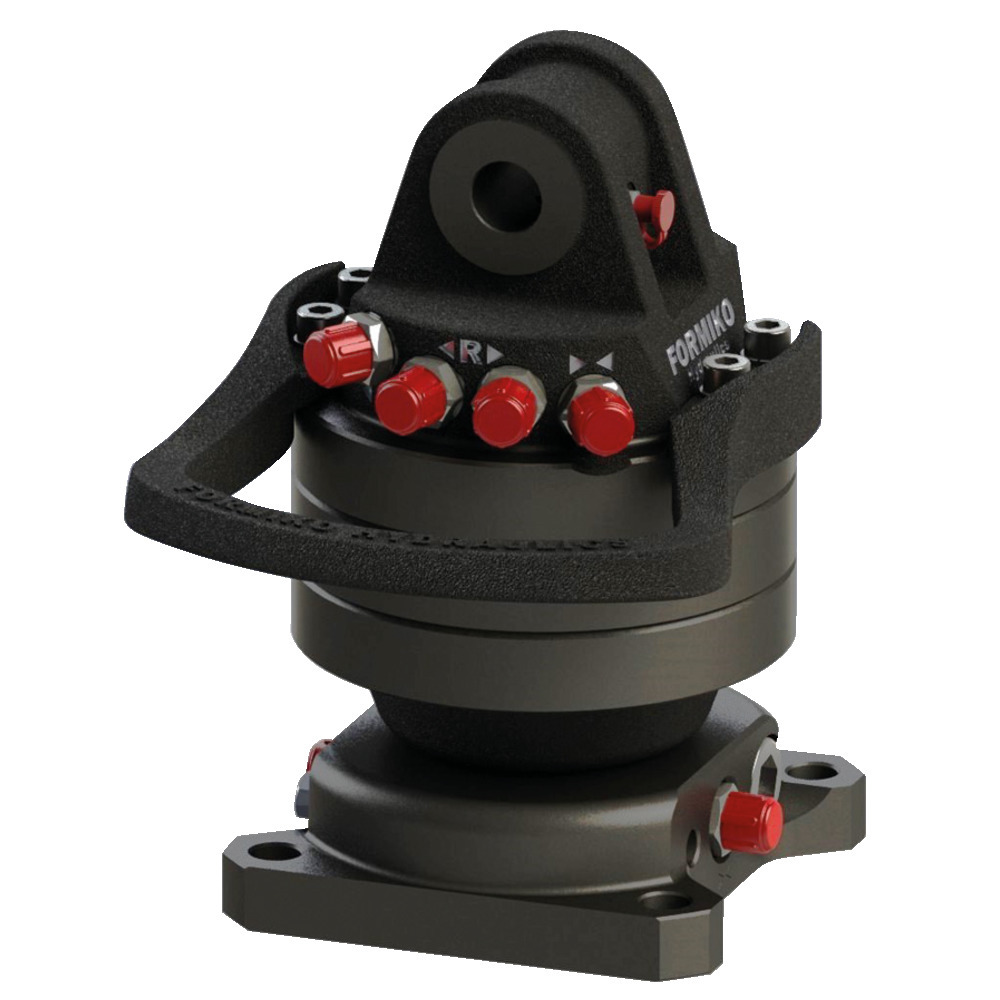

Rotator FHR 4.500 flange

Sale and shipment by: FAIE Handels GmbH

Professional rotator from Latvian production!Endless rotation range, for use on forwarding wagons, forwarding tongs, front loaders or similar. With protective bracket for the supply lines, without hoses. with 4-hole flange with 140 x 140 mm hole size, 17 mm bore, ~ max. Axial load 4.5 tons (static), ~ 1050 Nm torque at max. 250 bar, ~ max. 300 bar for closing the gripper, max. 200 bar for opening the gripper, ~required oil flow 20 liters/min., ~connection 3/8", weight 25 kg.ATTENTION: Regularly check the Allen screw on the flange for tightness - tighten if necessary!

€699.00*
